MIDI Fuse Holder
Specification
| Voltage & Current: | 30/70VDC, 200A Maximum |
|---|---|
| Fuse: | Prosemi MIDI fuse PMD-30V/70V series |
| Wire Range: | 2.5mm2 to 25mm2 |
| Torque Ratings: | 6~9N•m (2.8 N•m maximum) |
| Flammability Ratings: | UL 94V0, self-extinguishing |
| Storage & Operating Temperature Range: | -20℃ to +125℃ (it’s not recommended, but the holder will work well under -40℃ without damage) |

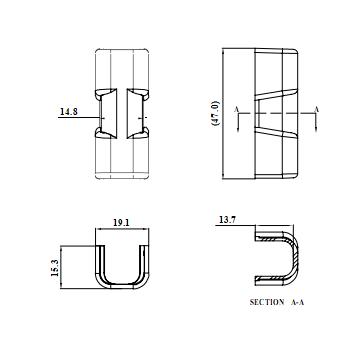

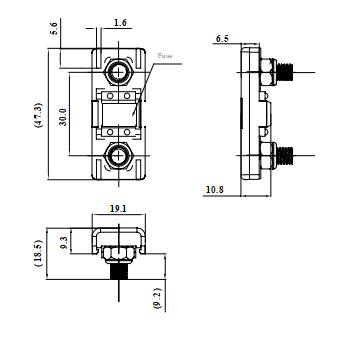

Dimention (Unit: mm):

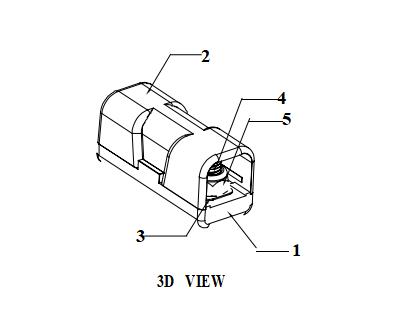

| NO | PART NAME | PART TYPE | MATERIAL | QTY |
|---|---|---|---|---|
| 1 | Mainstay | JH-1L-ZT | PA66 | 1 |
| 2 | Upper cover | JH-1L-SG | PA66 | 1 |
| 3 | Square bolts | M6*11.5*10 | A2 | 2 |
| 4 | Nut | M6*5 | SWRCH35K | 2 |
| 5 | Fuse | Refer to fuse datasheet | / | 0 |
