Home Appliance Field

PROSEMI, a trusted partner in the household appliances industry, specializes in providing high-quality and high-performance electronic components and solutions. Our extensive product line encompasses a full range of micro-resistance current sensing resistors, fuses, discharge tubes, transient voltage suppression diodes, electrostatic suppressors, and various types of fuses. All these products have passed stringent international certifications such as VDE, UL, 3C, and AECQ200, ensuring their exceptional quality and safety, meeting the rigorous requirements of the household appliances sector.

Contact Us For More Info
Home Appliance Field
Model Package Series TCR (ppm/℃) Resistance Value (mΩ) Power Rating (W or A) Tolerance(%) Automotive PDF
PSRP12 1216 PSRP-T ±50 0.5 5W ±0.5,±1,±2,±5 No
APSRP12 1216 APSRP-T ±50 1 3W ±0.5,±1,±2,±5 Yes
APSRP12 1216 APSRP-T ±50 0.5 5W ±0.5,±1,±2,±5 Yes
PSRP25M6G0M30 2512 (6432 Metric) PSRP ±175ppm/°C 0.3 mOhms 6W 2% Current Sense, Industrial Grade, Low Thermal EMF, Low TCR, Very Low Inductance
PSRP25M6GR001 2512 (6432 Metric) PSRP ±100ppm/°C 1 mOhms 6W 2% Current Sense, Industrial Grade, Low Thermal EMF, Low TCR, Very Low Inductance
PSRP25K6GR002 2512 (6432 Metric) PSRP ±75ppm/°C 2 mOhms 6W 2% Current Sense, Industrial Grade, Low Thermal EMF, Low TCR, Very Low Inductance
PSRP25K4GR003 2512 (6432 Metric) PSRP ±75ppm/°C 3 mOhms 4W 2% Current Sense, Industrial Grade, Low Thermal EMF, Low TCR, Very Low Inductance
PSRP25K4GR004 2512 (6432 Metric) PSRP ±75ppm/°C 4 mOhms 4W 2% Current Sense, Industrial Grade, Low Thermal EMF, Low TCR, Very Low Inductance
PSRP25K6JR002 2512 (6432 Metric) PSRP ±75ppm/°C 2 mOhms 6W 5% Current Sense, Industrial Grade, Low Thermal EMF, Low TCR, Very Low Inductance
PSRP25K4JR003 2512 (6432 Metric) PSRP ±75ppm/°C 3 mOhms 4W 5% Current Sense, Industrial Grade, Low Thermal EMF, Low TCR, Very Low Inductance
PSRP25K4JR004 2512 (6432 Metric) PSRP ±75ppm/°C 4 mOhms 4W 5% Current Sense, Industrial Grade, Low Thermal EMF, Low TCR, Very Low Inductance
PSRP25K3GR005 2512 (6432 Metric) PSRP ±75ppm/°C 5 mOhms 3W 2% Current Sense, Industrial Grade, Low Thermal EMF, Low TCR, Very Low Inductance
PSRP25M6J0M30 2512 (6432 Metric) PSRP ±175ppm/°C 0.3 mOhms 6W 5% Current Sense, Industrial Grade, Low Thermal EMF, Low TCR, Very Low Inductance
PSRP25M6JR001 2512 (6432 Metric) PSRP ±100ppm/°C 1 mOhms 6W 5% Current Sense, Industrial Grade, Low Thermal EMF, Low TCR, Very Low Inductance
PSRP25M6DR001 2512 (6432 Metric) PSRP ±100ppm/°C 1 mOhms 6W 0.5% Current Sense, Industrial Grade, Low Thermal EMF, Low TCR, Very Low Inductance
More High-Power Alloy Current Shunt Resistors
Model Package Series TCR (ppm/℃) Resistance Value (mΩ) Power Rating (W or A) Tolerance(%) Automotive PDF
LMJ12 1206 LMJ12 ±50 1~100 1W ±0.5,±1,±2,±5 No
LMJ12 1206 LMJ12 ±380 1~100 1W ±0.5,±1,±2,±5 No
LMJ12MF0P5R160 1206 LMJ12 ±50ppm/°C 160 mOhms 0.5W 1% Current Sense, Industrial Grade, Extremely Low Resistance Values, Very Low Inductance, Low Thermal EMF
ALMJ12 1206 ALMJ12 ±150 1 1W ±0.5,±1,±2,±5 Yes
ALMJ12 1206 ALMJ12 ±380 1.5 1W ±0.5,±1,±2,±5 Yes
ALMJ12 1206 ALMJ12 ±100 2 & 2.5 1W ±0.5,±1,±2,±5 Yes
ALMJ12 1206 ALMJ12 ±50 101~200 0.5W ±0.5,±1,±2,±5 Yes
ALMJ12 1206 ALMJ12 ±50 3~100 1W ±0.5,±1,±2,±5 Yes
LMJ20F1P5R100 2010 (5025 Metric) LMJ20 ±50ppm/°C 100 mOhms 1.5W 1% Current Sense, Industrial Grade, Thick copper conductor metallized material, Ultra long term stability, Stable materials, Excellent trustworthiness, High power rating, Ultra-low temperature drift (good TCR)
LMJ20F1P5R050 2010 (5025 Metric) LMJ20 ±50ppm/°C 50 mOhms 1.5W 1% Current Sense, Industrial Grade, Thick copper conductor metallized material, Ultra long term stability, Stable materials, Excellent trustworthiness, High power rating, Ultra-low temperature drift (good TCR)
LMJ20F1P5R033 2010 (5025 Metric) LMJ20 ±50ppm/°C 33 mOhms 1.5W 1% Current Sense, Industrial Grade, Thick copper conductor metallized material, Ultra long term stability, Stable materials, Excellent trustworthiness, High power rating, Ultra-low temperature drift (good TCR)
LMJ20F1P5R003 2010 (5025 Metric) LMJ20 ±50ppm/°C 3 mOhms 1.5W 1% Current Sense, Industrial Grade, Thick copper conductor metallized material, Ultra long term stability, Stable materials, Excellent trustworthiness, High power rating, Ultra-low temperature drift (good TCR)
LMJ20F1P5R030 2010 (5025 Metric) LMJ20 ±50ppm/°C 30 mOhms 1.5W 1% Current Sense, Industrial Grade, Thick copper conductor metallized material, Ultra long term stability, Stable materials, Excellent trustworthiness, High power rating, Ultra-low temperature drift (good TCR)
LMJ20F1P5R020 2010 (5025 Metric) LMJ20 ±50ppm/°C 20 mOhms 1.5W 1% Current Sense, Industrial Grade, Thick copper conductor metallized material, Ultra long term stability, Stable materials, Excellent trustworthiness, High power rating, Ultra-low temperature drift (good TCR)
LMJ20F1P5R010 2010 (5025 Metric) LMJ20 ±50ppm/°C 10 mOhms 1.5W 1% Current Sense, Industrial Grade, Thick copper conductor metallized material, Ultra long term stability, Stable materials, Excellent trustworthiness, High power rating, Ultra-low temperature drift (good TCR)
More Metal Alloy Current Sense Resistors
Model Interrupting Rating Voltage Rating(V) Ampere Rating(A) Typical Cold Resistance(mΩ) Typical Melting I²t(A²Sec) Dimension(mm) Automotive PDF
0402FA-R500-L 35 VDC 0.5 A 0.165 Ω 0.007 0.04 in x 0.02 in Very fast acting at 200% overload current, Low DCR, High Inrush Current Withstand Capability, Fiberglass-Reinforced Epoxy Fuse Body
0402FA-R200 32 VDC 0.2 A 1.75 Ohms 0.0006 0.04 in x 0.02 in Fast-Acting Overcurrent Protection, One-Time Circuit Disconnection, Ceramic and Glass Construction, Compatible with Reflow and Wave Soldering
0402FA-R250 35A@32VDC 32VDC 0.25 1.5 0.001 1.00×0.5×0.40 No
0402FA-R315 35A@32VDC 32VDC 0.315 1 0.0014 1.00×0.5×0.40 No
0402FA-R375 35A@32VDC 32VDC 0.375 0.78 0.0018 1.00×0.5×0.40 No
0402FA-R500 35A@32VDC 32VDC 0.5 0.5 0.0043 1.00×0.5×0.40 No
0402FA-R750 35A@32VDC 32VDC 0.75 0.22 0.011 1.00×0.5×0.40 No
0402FA-1A 35A@32VDC 32VDC 1 0.13 0.04 1.00×0.5×0.40 No
0402FA-1.25A 35A@32VDC 32VDC 1.25 0.1 0.048 1.00×0.5×0.40 No
0402FA-1.5A 35A@32VDC 32VDC 1.5 0.078 0.06 06 1.00×0.5×0.40 No
0402FA-2A 35A@32VDC 32VDC 2 0.04 0.13 1.00×0.5×0.40 No
0402FA-2.5A 35A@32VDC 32VDC 2.5 0.024 0.2 1.00×0.5×0.40 No
0402FA-3A 35A@32VDC 32VDC 3 0.018 0.33 1.00×0.5×0.40 No
0402FA-3.5A 35A@32VDC 32VDC 3.5 0.014 0.45 1.00×0.5×0.40 No
0402FA-4A 35A@32VDC 32VDC 4 0.011 0.6 1.00×0.5×0.40 No
More Chip Fuses
Model Package Power dissipation Ppk(W) Reverse Stand-off Voltage VRWM(V) Breakdown Voltage VBR @ IT Min.(V) Breakdown Voltage VBR @ IT Max.(V) Test Current IT(mA) Max. Clamping Voltage @ IPP VC MAX.(V) Max. Peak Pulse Current IPP(A) Max. Reverse Leakage @ VRWM IR(uA) Automotive PDF
SM8S10A DO-218AB 6600 10 11.1 12.3 5 17 388 10 Yes
SM8S10CA DO-218AB 6600 10 11.1 12.3 5 17 388 10 Yes
SM8S11A DO-218AB 6600 11 12.2 13.5 5 18.2 363 10 Yes
SM8S11CA DO-218AB 6600 11 12.2 13.5 5 18.2 363 10 Yes
SM8S12A DO-218AB 6600 12 13.3 14.7 5 19.9 332 10 Yes
SM8S12CA DO-218AB 6600 12 13.3 14.7 5 19.9 332 10 Yes
SM8S13A DO-218AB 6600 13 14.4 15.9 5 21.5 307 10 Yes
SM8S13CA DO-218AB 6600 13 14.4 15.9 5 21.5 307 10 Yes
SM8S14A DO-218AB 6600 14 15.6 17.2 5 23.2 284 10 Yes
SM8S14CA DO-218AB 6600 14 15.6 17.2 5 23.2 284 10 Yes
SM8S15A DO-218AB 6600 15 16.7 18.5 5 24.4 270 10 Yes
SM8S15CA DO-218AB 6600 15 16.7 18.5 5 24.4 270 10 Yes
SM8S16A DO-218AB 6600 16 17.8 19.7 5 26 254 10 Yes
SM8S16CA DO-218AB 6600 16 17.8 19.7 5 26 254 10 Yes
SM8S17A DO-218AB 6600 17 18.9 20.9 5 27.6 239 10 Yes
More Transient Voltage Suppressor Diode
Model Package Description VRWM MAX(V) VBR MIN(V) CJ TYP (pF) L-L @ VR=0V Peak Power (W) (8/20µs) IPP (A) @ 8/20µs IR MAX (µA) @ VRWM Automotive PDF
PTN062G15M3B18 DFN0603-2L Bi-direction TVS Diode, 1 Line ESD protection 3.3 3.5 18 80 10 0.5 No
PTN062G15S7B8 DFN0603-2L Bi-direction TVS Diode,1 Line ESD protection 7 7.5 20 80 6 0.2 No
PTN062G20S5B8 DFN0603-2L Bi-direction TVS Diode,1 Line ESD protection 5 6 6.5 36 3.5 0.1 No
PTN062G22S5B10 DFN0603-2L Bi-direction TVS Diode,1 Line ESD protection 5 5.6 22 100 8 0.5 No
PTN062G25S3B8 DFN0603-2L Bi-direction TVS Diode,1 Line ESD protection 3.3 3.5 20 80 8 0.2 No
PTN062L05S5B10 DFN0603-2L Bi-direction TVS Diode,1 Line ESD protection 5 6 0.5 125 5 0.2 No
PTN062L08S5C7 DFN0603-2L Bi-direction TVS Diode,1 Line ESD protection 5 6 0.8 75 5 0.5 No
PTN062L3M5B4 DFN0603-2L Bi-direction TVS Diode,1 Line ESD protection 5 6 0.45 100 4 0.2 No
PTN062L4S5B4 DFN0603-2L Bi-direction TVS Diode,1 Line ESD protection 5 6 3.5 27 2 0.1 No
PTN062L6M5B6 DFN0603-2L Bi-direction TVS Diode, 1 Line ESD protection 5 5.5 6 65 6 0.5 No
PTN062L6S5B9 DFN0603-2L Bi-direction TVS Diode,1 Line ESD protection 5 6 6 90 4 0.05 No
PTN062U035M5B6 DFN0603-2L Bi-direction TVS Diode, 1 Line ESD protection 5.5 9(VT) 0.4 60 3.5 0.1 No
PTN102G12M3B8 DFN1006-2L Bi-direction TVS Diode, 1 Line ESD protection 3.3s 3.8 17 80 10 0.5 No
PTN102G15M24B24 DFN1006-2L Bi-direction TVS Diode, 1 Line ESD protection 24 26.7 20 240 6 0.5 No
PTN102G15S7B8 DFN1006-2L Bi-direction TVS Diode,1 Line ESD protection 7 7.5 15(typ) 80 6 0.2 No
More Electrostatic Discharge Suppressor
Model DC spark-over voltage (100V/S) V DC spark-over voltage (100V/S) % Impulse spark-over Voltage(@1KV/us) V Nominal impulse discharge current (8/20us,±5 applications) KA Insulation resistance GΩ Insulation resistance DC Capacitance (at 1MHz) pF Installation method Size Automotive PDF
More Gas Discharge Tube
Model Package IF(AV) (A) VF(V) Max. VF(V) @IF(A) VRRM (V) IR (uA) Trr(ns) Automotive PDF
BAT54 SOT-23 0.2 1 0.1 30 2 5 No
BAT54A SOT-23 0.2 1 0.1 30 2 5 No
BAT54C SOT-23 0.2 1 0.1 30 2 3 No
BAT54S SOT-23 0.2 1 0.1 30 2 5 No
B0520W SOD123 0.5 0.385 0.5 20 250 No
B0530W SOD123 0.5 0.43 0.5 30 500 No
B0540W SOD123 0.5 0.51 0.5 40 20 No
B0520WS SOD323 0.5 0.39 0.5 20 250 No
B0530WS SOD323 0.5 0.45 0.5 30 500 No
B0540WS SOD323 0.5 0.51 0.5 40 20 No
1N5817 DO-41 1 0.45 1 20 500 No
1N5818 DO-41 1 0.55 1 30 500 No
1N5819 DO-41 1 0.55 1 40 500 No
SR120 DO-41 1 0.5 1 20 500 No
SR130 DO-41 1 0.5 1 30 500 No
More Schottky Diode
Model Package IF(AV) (A) VF(V) Max. VF(V) @IF(A) VRRM (V) IR (uA) Automotive PDF
ABS02 ABS 0.8 0.95 0.4 200 10 No
ABS04 ABS 0.8 0.95 0.4 400 10 No
ABS06 ABS 0.8 0.95 0.4 600 10 No
ABS08 ABS 0.8 0.95 0.4 800 10 No
ABS10 ABS 0.8 0.95 0.4 1000 10 No
ABS202 ABS 2 1.1 1 200 10 No
ABS204 ABS 2 1.1 1 400 10 No
ABS206 ABS 2 1.1 1 600 10 No
ABS208 ABS 2 1.1 1 800 10 No
ABS210 ABS 2 1.1 1 1000 10 No
MB2M MBM 0.5 1 0.4 200 5 No
MB4M MBM 0.5 1 0.4 400 5 No
MB6M MBM 0.5 1 0.4 600 5 No
MB8M MBM 0.5 1 0.4 800 5 No
MB10M MBM 0.5 1 0.4 1000 5 No
More Bridge Rectifier

Our Application

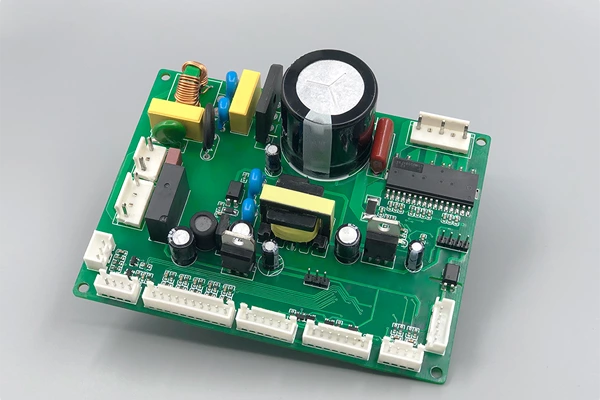

Precision Low-Resistance Alloy Resistors in Refrigerators

Precision Low-Resistance Alloy Resistors in Refrigerators

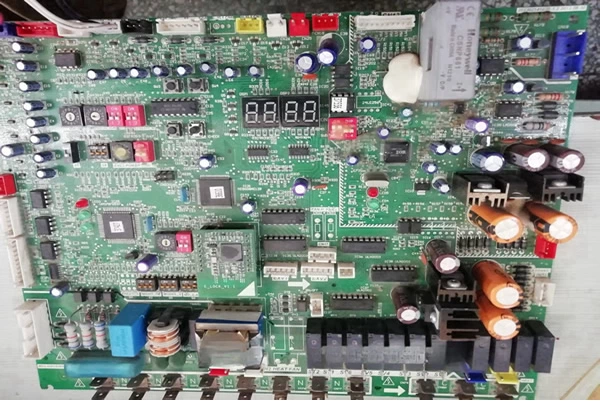

Precision Low-Resistance Alloy Resistors in Air Conditioners

Precision Low-Resistance Alloy Resistors in Air Conditioners

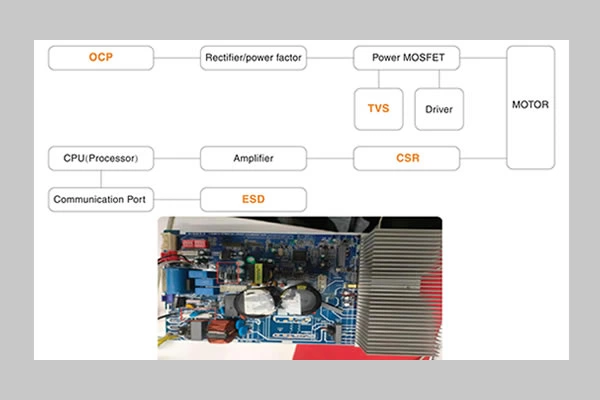

Precision Low-Resistance Alloy Resistors in Small Household Appliance Control Boards

Precision Low-Resistance Alloy Resistors in Small Household Appliance Control Boards
