Customization Smd Fuse Manufacturers

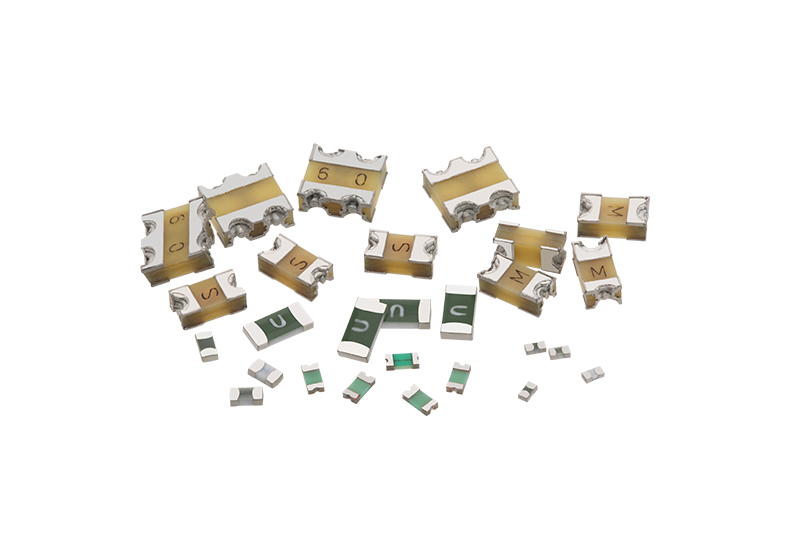

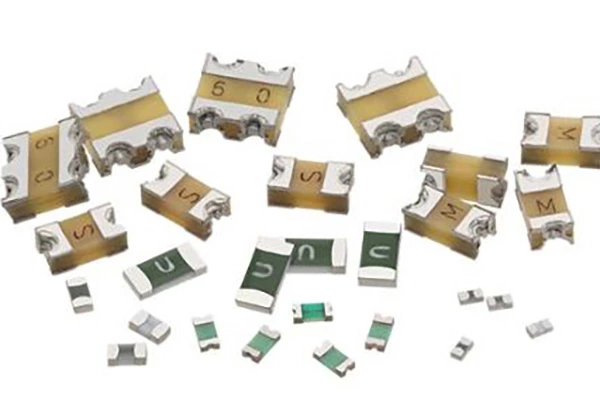

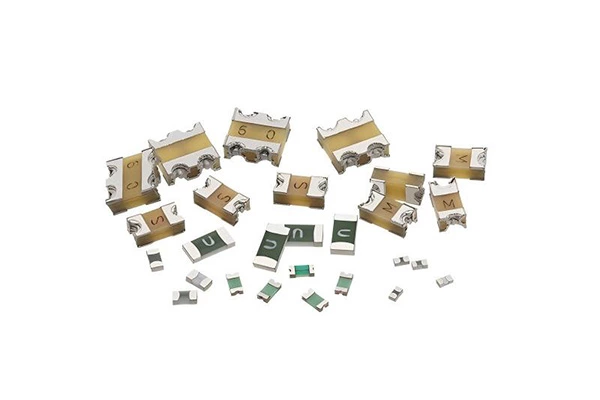

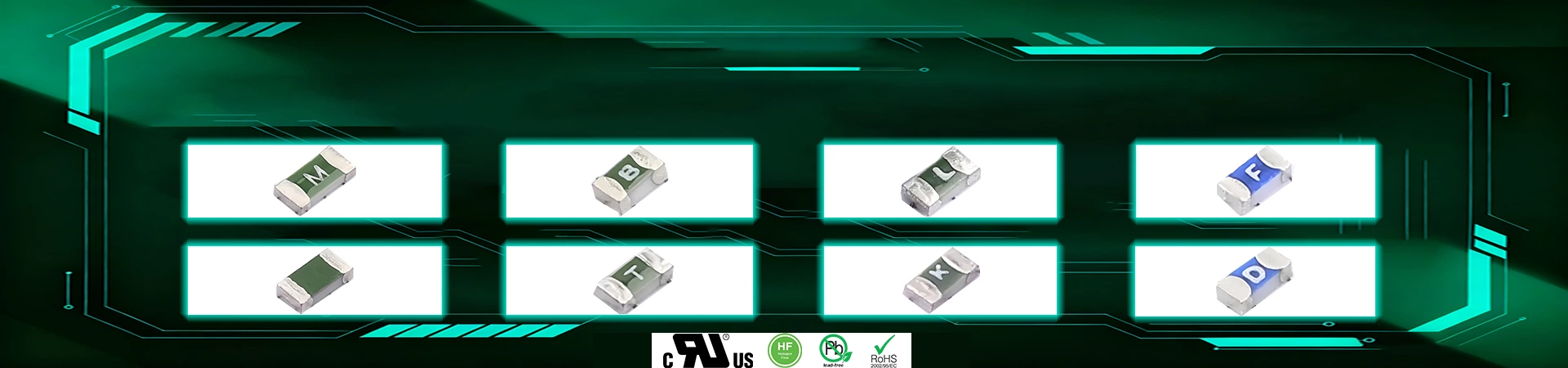

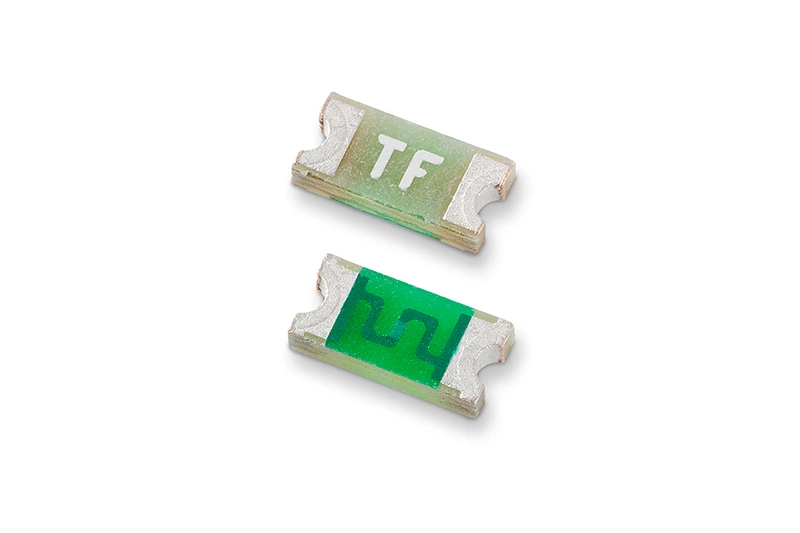

Chip Fuses

PROSEMI Chip Fuses are the fuses setting the industry standard for performance, reliability and quality. The solder-free design provides excellent on-off and temperature cycling characteristics in use and also makes our SMD fuses more heat and shock tolerant than typical sub-miniature fuses.

Available in a variety of current ratings and sizes, our SMD fuses are perfect for applications across consumer electronics, telecommunications, automotive, and industrial sectors. Their small form factor ensures minimal impact on circuit design, while their robust construction guarantees long-term reliability and protection.

With fast and flexible delivery options, along with customizable solutions to meet specific requirements, our SMD fuses offer the perfect balance of safety, efficiency, and durability for your most demanding designs. Keep your circuits protected with the dependable performance of PROSEMI SMD fuses.

Download Product Files Contact Us For More Info

Features And Benefits

Small size 0.04x0.02 / 0.06x0.03 / 0.12x0.06 inch
Halogen free, lead free and RoHS compliant
Excellent environmental integrity
One time positive disconnect
AEC-Q200 Automotive GRADE Certified

Product Application

Flat panel displays and televisions
Automotive infotainment and ECU
Computer servers
Portable electronics
Mobile device chargers
Power Battery Packs

Model	Interrupting Rating	Voltage Rating(V)	Ampere Rating(A)	Typical Cold Resistance(mΩ)	Typical Melting I²t(A²Sec)	Dimension(mm)	Automotive
1214FA-60A-W	300A@24VDC	24VDC	60	0.68	530	3.2×3.6×1.1	No
1214FA-50A-W	300A@24VDC	24VDC	50	0.78	330	3.2×3.6×1.1	No
1214FA-40A-W	300A@24VDC	24VDC	40	0.92	283	3.2×3.6×1.1	No
0402FA-R200	35A@32VDC	32VDC	0.2	2.25	0.0006	1.00×0.5×0.40	No
0402FA-R250	35A@32VDC	32VDC	0.25	1.5	0.001	1.00×0.5×0.40	No
0402FA-R315	35A@32VDC	32VDC	0.315	1	0.0014	1.00×0.5×0.40	No
0402FA-R375	35A@32VDC	32VDC	0.375	0.78	0.0018	1.00×0.5×0.40	No
0402FA-R500	35A@32VDC	32VDC	0.5	0.5	0.0043	1.00×0.5×0.40	No
0402FA-R750	35A@32VDC	32VDC	0.75	0.22	0.011	1.00×0.5×0.40	No
0402FA-1A	35A@32VDC	32VDC	1	0.13	0.04	1.00×0.5×0.40	No
0402FA-1.25A	35A@32VDC	32VDC	1.25	0.1	0.048	1.00×0.5×0.40	No
0402FA-1.5A	35A@32VDC	32VDC	1.5	0.078	0.06	06 1.00×0.5×0.40	No
0402FA-2A	35A@32VDC	32VDC	2	0.04	0.13	1.00×0.5×0.40	No
0402FA-2.5A	35A@32VDC	32VDC	2.5	0.024	0.2	1.00×0.5×0.40	No
0402FA-3A	35A@32VDC	32VDC	3	0.018	0.33	1.00×0.5×0.40	No
0402FA-3.5A	35A@32VDC	32VDC	3.5	0.014	0.45	1.00×0.5×0.40	No
0402FA-4A	35A@32VDC	32VDC	4	0.011	0.6	1.00×0.5×0.40	No
0603FA-R250	50A@32VDC	32VDC	0.25	3.25	0.00042	1.60×0.81×0.48	Yes
0603FA-R375	50A@32VDC	32VDC	0.375	1.8	0.00093	1.60×0.81×0.48	Yes
0603FA-R500	50A@32VDC	32VDC	0.5	1.07	0.001	1.60×0.81×0.48	Yes
0603FA-R750	50A@32VDC	32VDC	0.75	0.47	0.009	1.60×0.81×0.48	Yes
0603FA-1A	50A@32VDC	32VDC	1	0.25	0.0095	1.60×0.81×0.48	Yes
0603FA-1.5A	50A@32VDC	32VDC	1.5	0.15	0.04	1.60×0.81×0.48	Yes
0603FA-2A	50A@32VDC	32VDC	2	0.078	0.11	1.60×0.81×0.48	Yes
