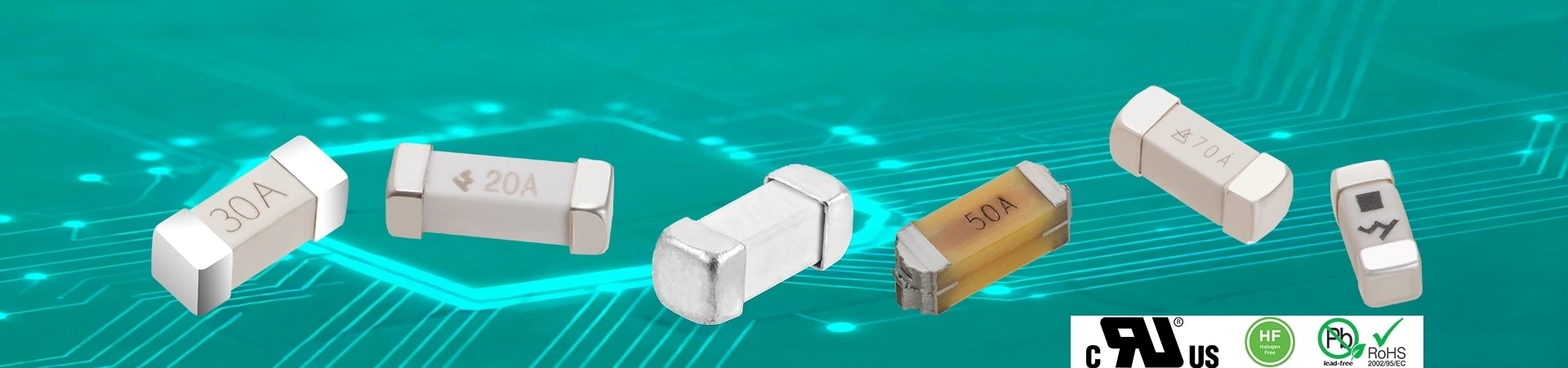

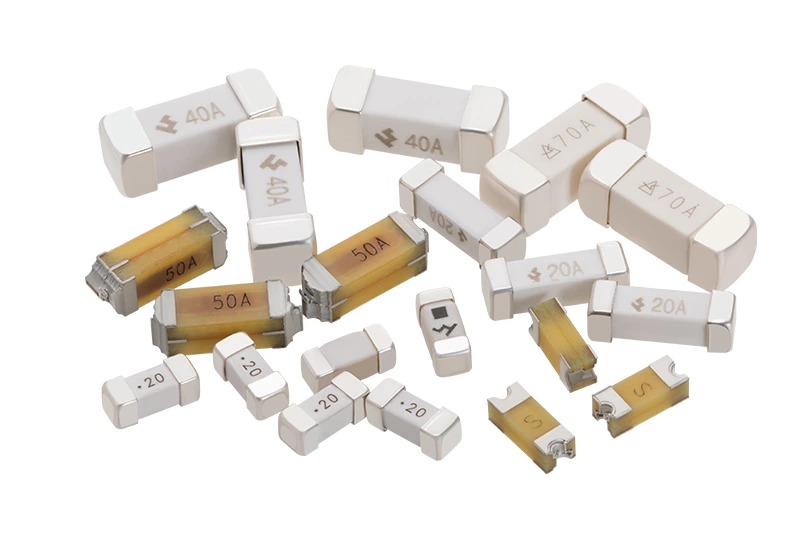

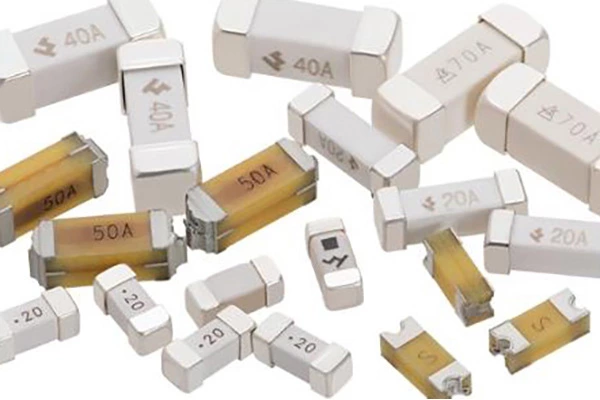

Brick Fuses

The Brick Fuses from PROSEMI can be used to address numerous over-current protection applications. High current brick fuse surface mount deign to save space. Square body with end cap design fully compliant with UL248-1 lead-free solder and high temperature profile associated with lead-free assembly.

Download Product Files Contact Us For More Info

Features And Benefits

Square body with Sliver plated end cap
Surface mount deign to save space
Halogen free, lead free and RoHS compliant
Excellent environmental integrity
Fully compatible with lead-free solder and high temperature profile associated with lead-free assembly
Designed to be compliant with UL 248-1

Product Application

Flat panel displays and televisions
Automotive infotainment and ECU
Computer servers
Portable electronics
Mobile device chargers
Power Battery Packs
LED and general lighting

Model	Interrupting Rating	Voltage Rating(V)	Ampere Rating(A)	Typical Cold Resistance(mΩ)	Typical Melting I²t(A²Sec)	Dimension(mm)	Automotive
1032FH-40A	800A@63Vdc	63VDC	40	0.0012	1400	10x3.15x3.15	No
1032FH-50A	800A@63Vdc	63VDC	50	0.00097	2200	10x3.15x3.15	No
1032FH-60A	800A@63Vdc	63VDC	60	0.00085	4000	10x3.15x3.15	No
1240FH-20A	150A@250Vac 150A@125Vac 800A@80Vdc 300A@100Vdc	250VAC	20	0.0029	20	10×3.15×3.15	No
1240FH-25A	150A@250Vac 150A@125Vac 800A@80Vdc 300A@100Vdc	250VAC	25	0.00225	35	10×3.15×3.15	No
1240FH-30A	300A@100Vdc	100VDC	30	0.0015	90	10×3.15×3.15	No
1240FH-30AH	800A@80Vdc	80VDC	30	0.00135	180	10×3.15×3.15	No
1240FH-40A	500A@125Vac 1000A@72Vdc	125VAC	40	0.0011	280	12.3×4.5×4.5	No
1240FH-50A	500A@125Vac 1000A@72Vdc	125VAC	50	0.00095	480	12.3×4.5×4.5	No
1240FH-60A	500A@125Vac 1000A@72Vdc	125VAC	60	0.0006	900	12.3×4.5×4.5	No
1240FH-80A	500A@125Vac 1000A@72Vdc	125VAC	80	0.00044	1700	12.3×4.5×4.5	No
1240FH-100A	500A@125Vac 1000A@72Vdc	125VAC	100	0.00029	5000	12.3×4.5×4.5	No
2410BP-20A	500A@72VDC	72VDC	20	0.0023	0.0023	6.2×2.6×2.6	No
2410BP-25A	500A@72VDC	72VDC	25	0.0017	400	6.2×2.6×2.6	No
2410BP-30A	500A@72VDC	72VDC	30	0.0012	900	6.2×2.6×2.6	No
2410BP-40A	500A@63VDC	63VDC	40	0.0009	1600	6.2×2.6×2.6	No
2410BP-30-E	500A@72VDC	72VDC	30	0.0011	1000	6.5x2.6x2.6	No
2410FA-R500	50A@125VAC 50A@125VDC	125VAC/DC	0.5	0.281	0.48	6.5x2.6x2.6	No
2410FA-R800	50A@125VAC 50A@125VDC	125VAC/DC	0.8	0.137	1.7	1.7	No
2410FA-1A	50A@125VAC 50A@125VDC	125VAC/DC	1	0.105	2.7	6.5x2.6x2.6	No
2410FA-1.5A	50A@125VAC 50A@125VDC	125VAC/DC	1.5	0.062	4.9	6.5x2.6x2.6	No
2410FA-2A	50A@125VAC 50A@125VDC	125VAC/DC	2	0.027	1.5	6.5x2.6x2.6	No
2410FA-2.5A	50A@125VAC 50A@125VDC	125VAC/DC	2.5	0.0182	5.5	6.5x2.6x2.6	No
2410FA-3A	50A@125VAC 50A@125VDC	125VAC/DC	3	0.0178	3.1	6.5x2.6x2.6	No
