Low-R0 SMD Polymer PPTC Fuse Supplier

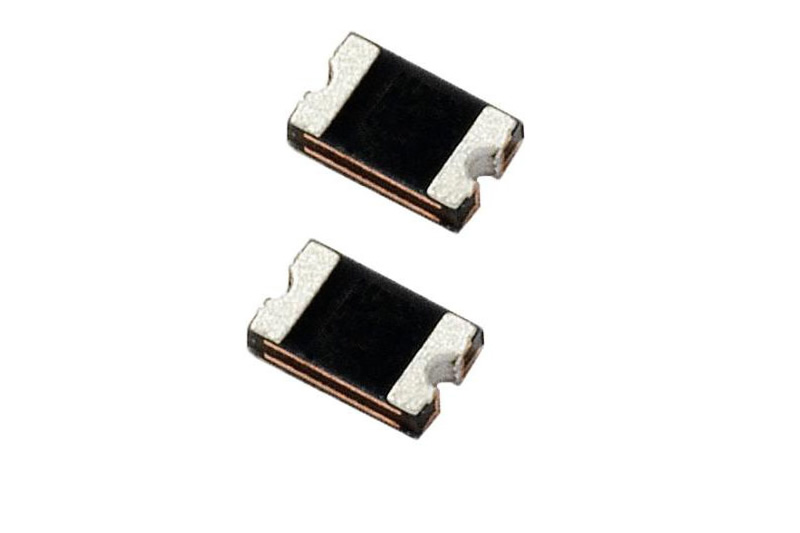

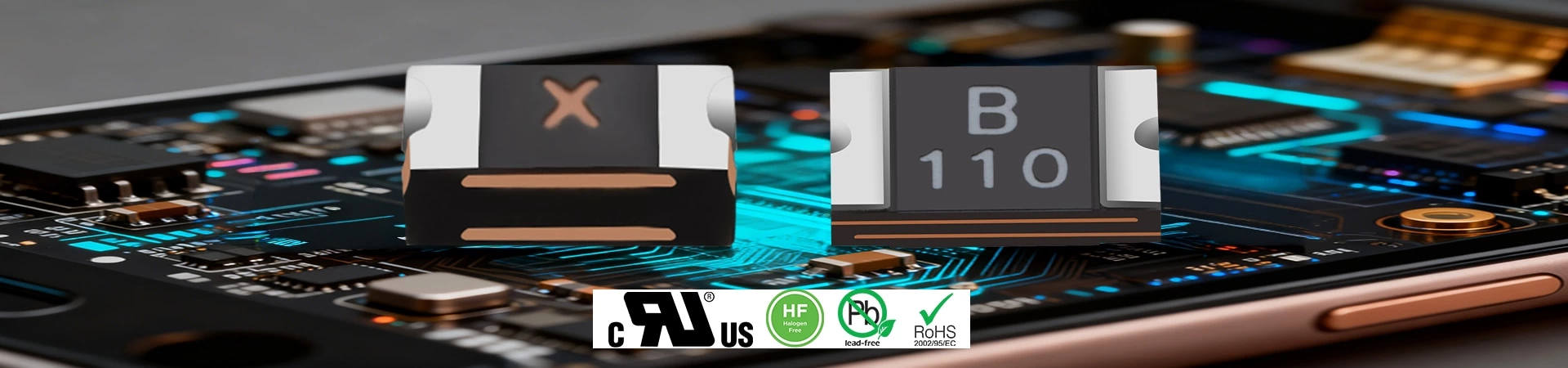

Low-R0 SMD Polymer PPTC Fuse

The PROSEMI Low-R0 SMD Polymer PPTC Fuse offers advanced overcurrent protection with an ultra-low resistance design, making it ideal for high-performance, space-constrained applications. Engineered with a polymer-based Positive Temperature Coefficient (PPTC) material, this fuse provides self-resetting protection against short circuits and overloads, automatically returning to normal operation once the fault condition is cleared.

With its low resistance (Low-R0) feature, it minimizes power loss and ensures efficient current flow, making it perfect for sensitive electronics, consumer devices, automotive circuits, mobile devices, and power management systems. The compact SMD form factor ensures easy integration into modern, high-density circuit boards, while providing reliable, long-lasting protection without the need for replacement.

The PROSEMI Low-R0 SMD Polymer PPTC Fuse delivers fast response times and high reliability, offering an effective, cost-efficient solution for protecting circuits in demanding applications.

Download Product Files Contact Us For More Info

Features And Benefits

Resettable over current and over temperature protection
Standard 0402、0603、0805、1206、1812mils footprint
Fast time-to-trip
RoHS complaint
Low resistance

Product Application

USB peripherals including new 3.0 / 2.0 ports
Li-ion / Li-polymer battery packs
Smart phones
E-Readers
LCD / LED HDTV
Tablet, Notebook PCs and computer peripherals
Digital cameras and video cameras
Hard disk drives
Game consoles

Related Products

We offer a wide range of categorized products, each of which has been carefully selected and designed to meet the individual needs of diverse consumers.

Model	Ihold (A)	Itrip (A)	Vmax (V)	Imax (A)	Time To Trip Current(A)	Time To Trip Time (Sec.)	Pd typ (W)	Rmin (Ω)	R1max (Ω)	Product Size	Automotive
SRF0402P010LR	0.1	3	6	50	0.5	1`	0.5	0.15	2	402	No
SRF0402P020LR	0.2	0.5	6	50	1	1	0.5	0.1	1.25	402	No
SRF0402P035LR	0.35	0.7	6	50	8	1	0.5	0.05	0.7	402	No
SRF0402P050LR	0.5	1	6	50	8	1	0.5	0.14	0.4	402	No
SRF0402P100LR	1	2	6	50	8	5	0.5	0.025	0.25	402	No
SRF0603P050LR	0.5	1	6	50	8	0.1	0.5	0.06	0.35	0603	No
SRF0603P075LR	0.75	1.5	6	50	8	2	0.5	0.038	0.25	0603	No
SRF0603P100LR	1	2	6	50	8	2	0.5	0.02	0.1	0603	No
SRF0603P110LR	1.1	2.2	6	50	8	0.3	0.5	0.03	0.12	0603	No
SRF0603P125LR	1.25	2.5	6	50	8	0.4	0.5	0.015	0.5	0603	No
SRF0603P150LR	1.5	3	6	50	8	2	0.5	0.015	0.085	0603	No
SRF0603P175LR	1.75	3.5	6	50	8	5	0.5	0.009	0.07	0603	No
SRF0603P200LR	2	4	6	50	8	5	0.7	0.008	0.065	0603	No
SRF0603P250LR	2.5	5	6	50	8	5	0.6	0.004	0.05	0603	No
SRF0603P260LR	2.6	5.2	6	50	8	5	1.1	0.007	0.06	0603	No
SRF0603P300LR	3	6	6	50	8	5	1.1	0.006	0.055	0603	No
SRF0805P075LR	0.75	1.5	6	50	8	1	1.2	0.02	0.16	0805	No
SRF0805P100LR	1	2	6	50	8	1	1.2	0.018	0.11	0805	No
SRF0805P110LR	1.1	2.2	6	50	8	1	1.2	0.018	0.11	0805	No
SRF0805P150LR	1.5	3	6	50	8	1	1.2	0.011	0.065	0805	No
SRF0805P175LR	1.75	3.5	6	50	8	2	1.2	0.01	0.06	0805	No
SRF0805P190LR	1.9	3.8	6	50	8	5	1.2	0.006	0.055	0805	No
SRF0805P200LR	2	4	6	50	10	2	1.2	0.006	0.055	0805	No
SRF0805P260LR	2.6	5.2	6	50	13	2	1.2	0.003	0.035	0805	No
