How To Choose The Right Smd Resettable Fuse For Your Circuit
Introduction

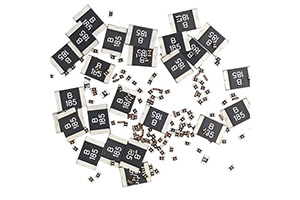

As electronic devices become more compact and sophisticated, circuit protection plays a vital role in ensuring safety, reliability, and long-term performance. SMD Resettable Fuses—also known as PTC Fuses—offer an efficient way to protect circuits from overcurrent conditions.
However, selecting the correct fuse is not always straightforward. Engineers must consider multiple parameters, operating conditions, and design constraints. This article provides a step-by-step design guide on how to choose the right SMD Resettable Fuse for your circuit.
Key Parameters to Consider
Hold Current (Ihold) and Trip Current (Itrip)
The hold current (Ihold) is the maximum current the fuse can carry continuously without tripping, while the trip current (Itrip) is the current at which the fuse will transition into its high-resistance state.
- Choose Ihold slightly above your normal operating current.
- Ensure Itrip is below the maximum current your circuit can safely handle.
Maximum Operating Voltage
Every fuse has a rated maximum voltage. Exceeding this limit can cause permanent damage or unsafe operation.
- For USB and low-voltage consumer devices, 6V–30V fuses are common.
- Automotive and industrial systems may require 32V–60V or higher.
Resistance and Power Dissipation
Higher resistance can affect circuit efficiency and generate additional heat. Always check:
- Initial resistance (Rmin/Rmax).
- Power dissipation during operation.
Environmental and Design Considerations
Ambient Temperature Effect on Fuse Performance
PTC fuses are sensitive to temperature changes. Higher ambient temperatures reduce Ihold, making the fuse trip more easily. Designers should apply derating curves provided in datasheets.
PCB Layout and Mounting Reliability
Proper PCB design ensures fuse stability:
- Place the fuse close to the power input for faster response.
- Avoid excessive soldering heat to prevent damage.
- Ensure adequate spacing to handle thermal expansion.
Common Mistakes in Fuse Selection
Choosing the Wrong Current Rating
A fuse that is underrated may trip too often, while one that is overrated may fail to protect the circuit.
Ignoring Reset Time and Durability
Some applications require quick recovery, while others need higher endurance. Not considering reset time can lead to unstable operation.
Step-by-Step Fuse Selection Guide
Identify Circuit Requirements
Operating voltage, current, and environmental conditions.
Application type (consumer electronics, automotive, industrial).
Match Specifications with Datasheet
Compare Ihold, Itrip, voltage, and resistance.
Apply derating factors for temperature.
Test and Verify in Real Application
Simulate overcurrent conditions.
Check thermal behavior and reset cycles.
Recommended Applications and Best Practices
Case Study Examples
Laptop charging circuit → 1206 SMD resettable fuse for USB-C protection.
Automotive infotainment system → AEC-Q200 qualified PTC fuse for stable operation.
Industrial controller → High-hold-current fuse for sensor modules.
Tips for Long-Term Reliability
- Always follow manufacturer datasheets.
- Allow safety margins in current ratings.
- Validate fuse performance under actual operating conditions.
Conclusion
Choosing the right SMD Resettable Fuse requires balancing electrical parameters, environmental factors, and practical design needs. By carefully evaluating Ihold, Itrip, voltage rating, resistance, and thermal performance, engineers can ensure reliable and safe circuit protection.
With proper selection and testing, resettable fuses not only improve system durability but also reduce maintenance costs—making them an indispensable component in modern electronics design.
