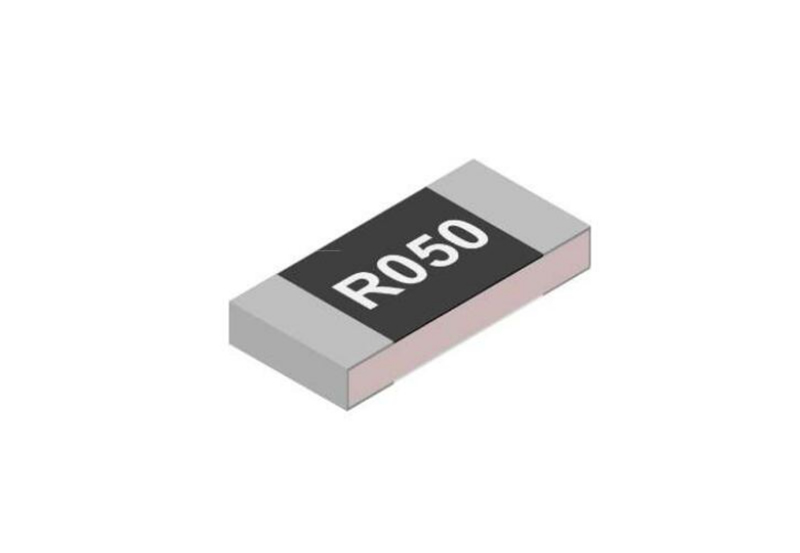

Metal Film Current Sensing Resistors

PROSEMI Metal Film Current-Sensing Resistors combine exceptional accuracy with reliable performance, making them perfect for applications that require precise current measurement with minimal power loss. These resistors feature a high-quality metal film element that ensures excellent temperature stability and low tolerances, providing consistent and accurate readings over time.

Ideal for power supplies battery management systems, automotive electronics, and industrial circuits, our metal film current-sensing resistors offer superior performance in detecting and regulating current. With a broad range of resistance values and customizable options, they deliver high precision and low noise, making them an essential component in designs where accuracy and reliability are critical.

Engineered for durability, these resistors maintain high performance even under demanding conditions, offering long-lasting stability and reliability. Whether you need off-the-shelf solutions or custom designs, our metal film resistors deliver the precision and quality you can trust for your most demanding applications.

Download Product Files Contact Us For More Info
Metal Film Current Sensing Resistors

Related Products

We offer a wide range of categorized products, each of which has been carefully selected and designed to meet the individual needs of diverse consumers.
Model Package Series TCR (ppm/℃) Resistance Value (mΩ) Power Rating (W or A) Tolerance(%) Automotive PDF
AMFR1225 1225 AMFR1225 ±100~150 10~2Ω 2 0.5、1、2、5 Yes
AMFR1020 1020 AMFR1020 ±100~150 10~2Ω 1 0.5、1、2、5 Yes
AMFR0612 0612 AMFR0612 ±50 10~2Ω 1、2、3 0.5、1、2、5 Yes
AMFR25 2512 AMFR25 ±50~150 500~910、 1Ω~10Ω 1 0.5、1、2、5 Yes
AMFR12 1206 AMFR12 ±50~150 100~10Ω 0.5 0.5、1、2、5 Yes
AMFR08 0805 AMFR08 ±100 39~10Ω 1 1、2、5 Yes
MFR1225 1225 MFR1225 ±100~150 10~2Ω 3 0.5、1、2、5 No
MFR1020 1020 MFR1020 ±100~150 10~2Ω 2 0.5、1、2、5 No
MFR0612 0612 MFR0612 ±100~150 10~2Ω 1 0.5、1、2、5 No
MFR08 0805 MFR08 ±50~150 39~10Ω 0.5 0.5、1、2、5 No
MFR12 1206 MFR12 ±50~150 100~10Ω 1 0.5、1、2、5 No
MFR25 2512 MFR25 ±50 500~910、1Ω~10Ω 1、2、3 0.5、1、2、5 No

What Advantages Do We Metal Film Current Sensing Resistors

Good Temperature Stability

Good Temperature Stability

With a relatively low temperature coefficient—typically between ±50 ppm/°C and ±100 ppm/°C—the resistance value changes very little across different temperature environments. This effectively reduces the impact of temperature on measurement results, ensuring accurate current detection.

Excellent High-Frequency Characteristics

Excellent High-Frequency Characteristics

Metal film resistors have low parasitic capacitance and inductance, allowing them to maintain good electrical performance in high-frequency circuits with minimal signal distortion. They are well-suited for high-frequency current sensing.

Low Noise

Low Noise

The resistor material and manufacturing process result in low operational noise for metal film current sensing resistors, which helps improve signal quality—especially important in noise-sensitive circuits.

Good Power Characteristics

Good Power Characteristics

These resistors have a certain power-handling capability, allowing them to be used in circuits with various power levels while maintaining stable performance within the rated power range.

Compact Size

Compact Size

The thin-film structure gives them a relatively small footprint, making them easy to install on space-constrained circuit boards and supporting miniaturization and integration of electronic devices.

High Cost-Effectiveness

High Cost-Effectiveness

Compared to some high-precision specialty resistors, metal film current sensing resistors have lower manufacturing costs. While meeting performance requirements, they offer good value for money and are suitable for large-scale production and application.

Product Application

  • Battery Charging Management Circuit
  • Audio Amplifier Circuit
  • Motor Drive Circuit
  • Inverter
  • Engine Control Unit (ECU)
  • Fuel Injector Monitoring
  • Ignition Coil
  • Automotive Power Management System
  • Switched-Mode Power Supply (SMPS)
  • Converters
  • Uninterruptible Power Supply (UPS)
  • Digital Multimeter
  • Oscilloscope
  • Base Station Power System
  • Mobile Phone Charger
  • Communication Power Adapter
  • Various Sensor Signal Conditioning Circuits
