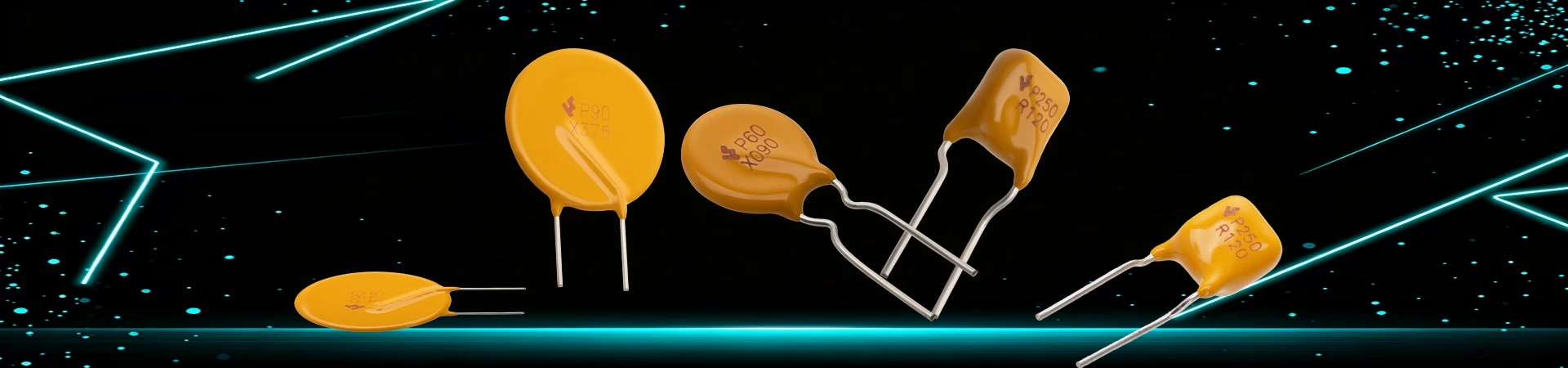

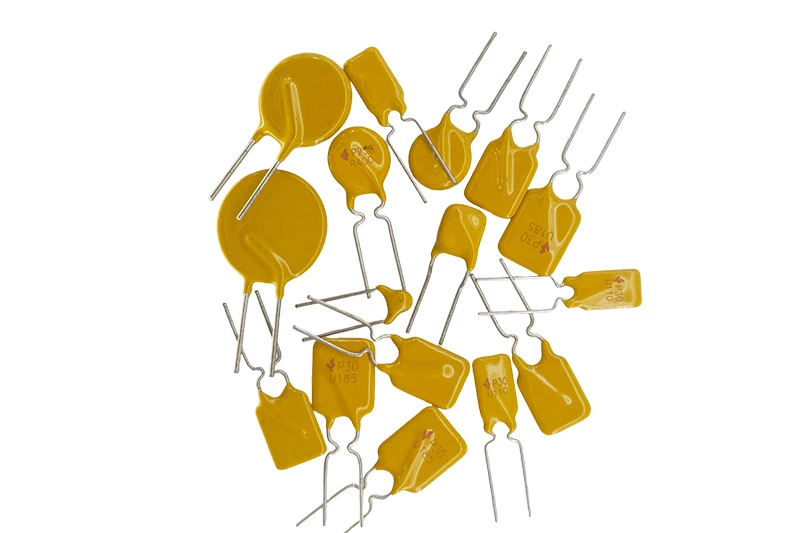

DIP PPTC

The PROSEMI DIP PPTC (Polymer Positive Temperature Coefficient) Fuse provides reliable overcurrent protection in a durable, through-hole package, making it ideal for applications that require robust and resettable protection. Designed with a polymer material that increases resistance when an overcurrent event occurs, the fuse automatically resets once the fault condition is cleared, offering continuous protection without the need for replacement.

Perfect for automotive, industrial, and consumer electronics, the PROSEMI DIP PPTC Fuse is known for its high reliability, fast response time, and low power consumption. Its through-hole design ensures strong mechanical connections, making it suitable for applications where vibration and shock resistance are critical.

With a range of current ratings available, the PROSEMI DIP PPTC Fuse offers an effective, cost-efficient solution for protecting circuits in demanding environments, providing both peace of mind and long-term durability.

Download Product Files Contact Us For More Info

Related Products

We offer a wide range of categorized products, each of which has been carefully selected and designed to meet the individual needs of diverse consumers.

Model	Ihold (A)	Itrip (A)	Vmax (V)	Imax (A)	Time To Trip Current(A)	Time To Trip Time (Sec.)	Pd typ (W)	Rmin (Ω)	R1max (Ω)	Automotive
PG16-030	0.3	0.6	16	40	1.5	5	1	0.3	0.9	No
PG16-050	0.5	1	16	40	2.5	5	1	0.2	0.75	No
PG16-065	0.65	1.3	16	40	3.25	5	1	0.12	0.27	No
PG16-075	0.75	1.5	16	40	3.75	5	1	0.1	0.255	No
PG16-090	0.9	1.8	16	40	4.5	5	1	0.09	0.24	No
PG16-110	1.1	2.2	16	40	5.5	5	1	0.08	0.225	No
PG16-120	1.2	2.4	16	40	6	5	1	0.07	0.225	No
PG16-135	1.35	2.7	16	40	6.75	5	1.3	0.04	0.18	No
PG16-160	1.6	3.2	16	40	8	10	1.5	0.03	0.105	No
PG16-185	1.85	3.7	16	40	9.25	10	2	0.03	0.135	No
PG16-200	2	4	16	40	10	10	2	0.03	0.075	No
PG16-250	2.5	5	16	50	12.5	5	2.5	0.02	0.075	No
PG16-300	3	6	16	50	15	2	2.5	0.038	0.105	No
PG16-400	4	8	16	50	20	3.5	2.8	0.021	0.06	No
PG16-500	5	10	16	100	25	3.6	3	0.015	0.038	No
PG16-600	6	12	16	100	30	5.8	3.2	0.01	0.03	No
PG16-700	7	14	16	100	35	8	3.5	0.008	0.023	No
PG16-800	8	16	16	100	40	9	3.5	0.006	0.018	No
PG16-900	9	18	16	100	45	12	3.8	0.005	0.017	No
PG16-1000	10	20	16	100	50	12.5	4	0.004	0.014	No
PG16-1100	11	22	16	100	55	13.5	4	0.004	0.012	No
PG16-1200	12	24	16	100	60	16	4.2	0.004	0.011	No
PG16-1300	13	26	16	100	65	25	4.8	0.0035	0.009	No
PG16-1400	14	28	16	100	70	20	4.8	0.003	0.008	No
