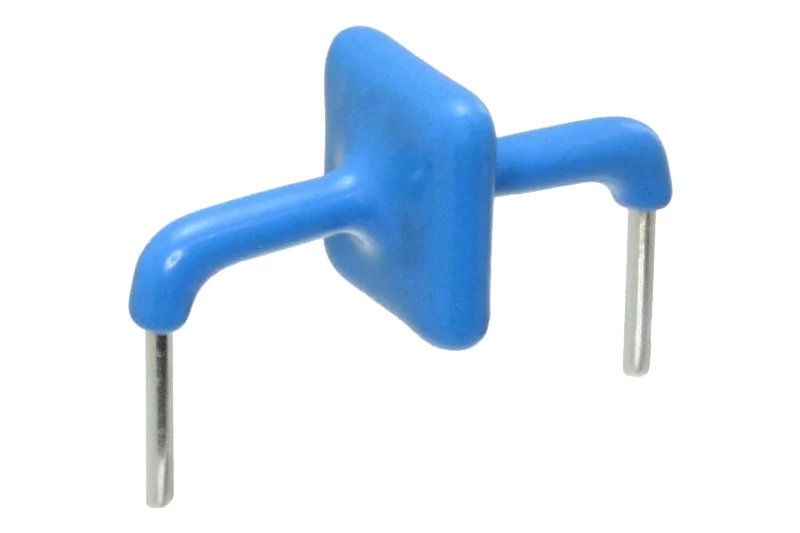

KA Transient Voltage Suppressor

The PROSEMI KA Transient Voltage Suppressor is engineered to provide advanced protection against voltage spikes and transient surges in electronic circuits. Designed to quickly clamp high-voltage transients, these suppressors prevent damage from electrostatic discharge (ESD), lightning, or other power surges, ensuring the safety and reliability of sensitive components.

Ideal for consumer electronics, automotive systems, telecommunications, and industrial applications, the PROSEMI KA Transient Voltage Suppressor offers fast response times, high surge tolerance, and low clamping voltage, making it an effective solution for protecting circuits from damaging transient events.

With a wide range of voltage ratings and configurations, the PROSEMI KA Transient Voltage Suppressor provides cost-effective, robust protection, extending the lifespan of your devices and ensuring stable performance in environments where voltage fluctuations are a concern.

Download Product Files Contact Us For More Info
KA Transient Voltage Suppressor

KA Transient Voltage Suppressor Related Products

Model Standoff Voltage (VSO) V Max. Reverse Leakage (IR)@ VSO (uA) Typical IR@85℃ (uA) Reverse Breakdown Voltage(VBR)@ IT Min Volts Reverse Breakdown Voltage(VBR)@ IT Max Volts Test Current IT mA Max. clamping Voltage VCL@IPP Peak Pulse Current(IPP) VCL Volts Max. clamping Voltage VCL@IPP Peak Pulse Current(IPP) IPP (8/20uS) A Max.Temp Coefficient OF VBR %/℃ Max. Capacitance 0 Bias 10KHZ Automotive PDF
AK3-015C 15 10 15 16 19 10 28 3000 0.1 9 No
AK3-030C 30 10 15 32 37 10 90 3000 0.1 11 No
AK3-058C 58 10 15 64 70 10 110 3000 0.1 6 No
AK3-066C 66 10 15 72 80 10 120 3000 0.1 6 No
AK3-076C 76 10 15 85 95 10 140 3000 0.1 6 No
AK3-150C 150 10 15 158 194 10 230 3000 0.1 2.6 No
AK3-170C 170 10 15 179 220 10 260 3000 0.1 2.4 No
AK3-208C 208 10 15 223 246 10 262 3000 0.1 2.4 No
AK3-380C 380 10 15 401 443 10 520 3000 0.1 2 No
AK3-430C 430 10 15 440 490 10 625 3000 0.1 2 No
AK6-030C 30 10 15 32 37 10 90 6000 0.1 11 No
AK6-058C 58 10 15 64 70 10 110 6000 0.1 8 No
AK6-066C 66 10 15 72 80 10 120 6000 0.1 6 No
AK6-076C 76 10 15 85 95 10 140 6000 0.1 6.5 No
AK6-170C 170 10 15 180 220 10 260 6000 0.1 2.8 No
AK6-190C 190 10 15 200 245 10 290 6000 0.1 2.5 No
AK6-240C 240 10 15 250 285 10 340 6000 0.1 2 No
AK6-380C 380 10 15 401 443 10 520 6000 0.1 1.4 No
AK6-430C 430 10 15 440 490 10 625 6000 0.1 1 No
AK10-015C 15 10 15 16 19 10 28 10000 0.1 12 No
AK10-030C 30 10 15 32 37 10 58 10000 0.1 11 No
AK10-058C 58 10 15 64 70 10 110 10000 0.1 6.5 No
AK10-066C 66 10 15 72 80 10 120 10000 0.1 6.5 No
AK10-076C 76 10 15 85 95 10 140 10000 0.1 6.5 No
