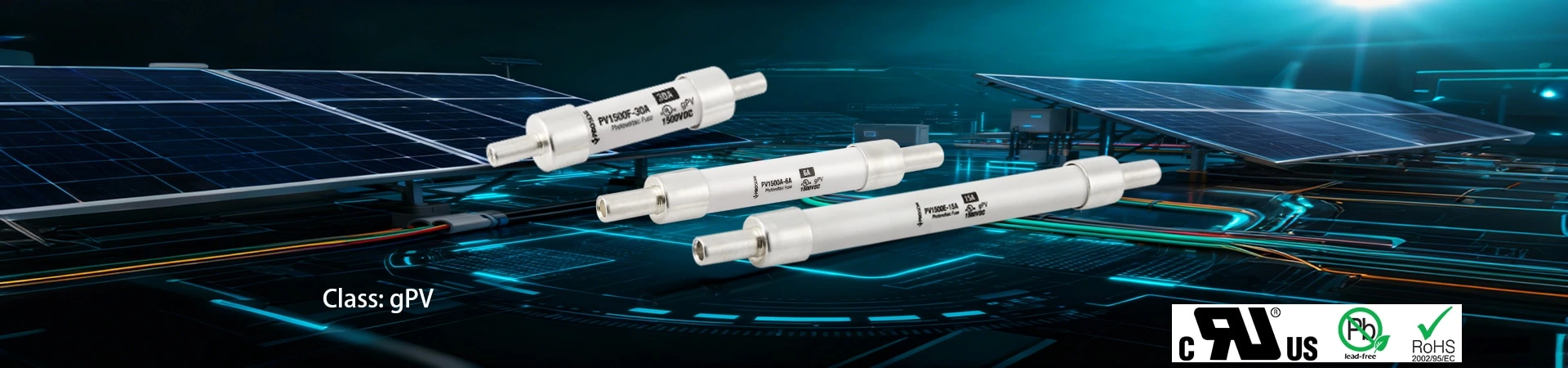

PV Fuse

solar pv fuse

PROSEMI PV Fuse is designed to integrate into an in-line assembly within a wire harness. The PV fuse provides Photovoltaic Wire Harness Protection that meets UL-248 for photovoltaic applications.

With features like high breaking capacity and low power loss, the PROSEMI PV Fuse is ideal for solar panels, inverters, and other solar energy equipment. It is engineered to meet the rigorous standards of the renewable energy industry, providing long-lasting performance and durability in both residential and commercial solar applications.

Available in a range of current ratings and sizes, the PROSEMI PV Fuse ensures optimal protection in photovoltaic systems, contributing to safer, more reliable solar energy solutions.

Download Product Files Contact Us For More Info

Features And Benefits

Compliance with US Requirements
Ceramic Body construction
RoHS compliant
Designed to UL 248-19 Recognized
Low watts loss

Product Application

Photovoltaic wire harness

Model	Interrupting Rating	Voltage Rating (V)	Ampere Rating (A)	Typical Cold Resistance (mΩ)	I²t (A² Sec) Pre-arcing	I²t (A² Sec) Total	Car
10PVT-1A	1000Vdc@30kA	1000VDC	1	620	0.15	0.4	No
10PVT-2A	1000Vdc@30kA	1000VDC	2	235	1.3	3.4	No
10PVT-3A	1000Vdc@30kA	1000VDC	3	110	4	12	No
10PVT-3.5A	1000Vdc@30kA	1000VDC	3.5	84.5	6.5	20	No
10PVT-4A	1000Vdc@30kA	1000VDC	4	72.8	10	28	No
10PVT-5A	1000Vdc@30kA	1000VDC	5	54.3	19	50	No
10PVT-6A	1000Vdc@30kA	1000VDC	6	38.9	32	93	No
10PVT-8A	1000Vdc@30kA	1000VDC	8	22.4	85	205	No
10PVT-10A	1000Vdc@30kA	1000VDC	10	15.4	30	70	No
10PVT-12A	1000Vdc@30kA	1000VDC	12	12.5	98	150	No
10PVT-15A	1000Vdc@30kA	1000VDC	15	9.1	149	230	No
10PVT-20A	1000Vdc@30kA	1000VDC	20	5.7	229	330	No
10PVT-25A	1000Vdc@30kA	1000VDC	25	4.55	411	500	No
10PVT-30A	1000Vdc@30kA	1000VDC	30	3.4	1200	2500	No
PV1500A-2.5A	1500V @20kA	1500V	2.5		3	15	No
PV1500A-3A	1500V @20kA	1500V	3		5	21	No
PV1500A-3.5A	1500V @20kA	1500V	3.5		15	56	No
PV1500A-4A	1500V @20kA	1500V	4		18	68	No
PV1500A-6A	1500V @20kA	1500V	6		60	200	No
PV1500E-20A	1500V@30kA	1500V	20		115	820	No
PV1500E-25A	1500V@30kA	1500V	25		175	1300	No
PV1500E-30A	1500V@30kA	1500V	30		241	1950	No
