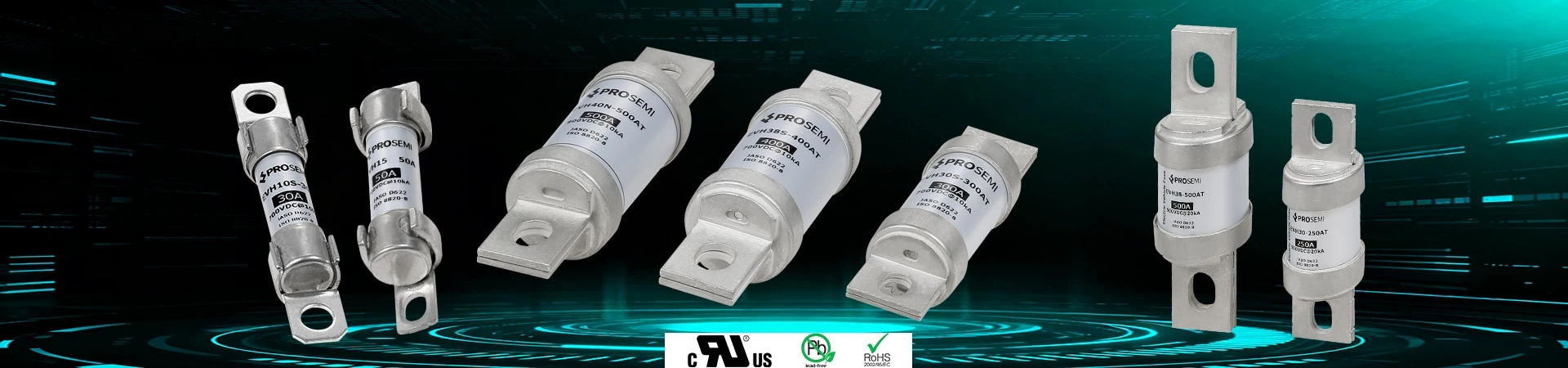

EV Fuses

The PROSEMI EV Fuses is designed for protection of accessory circuits in electric and hybrid electric vehicles. Higher interrupting rating protects high capacity battery packs needed for vehicle acceleration and range requirements.

Download Product Files Contact Us For More Info
EV Fuses

Features And Benefits

  • Designed to JASO D622 & ISO 8820-8
  • Excellent DC performance
  • Lead free and RoHS compliant
  • High Inrush with standing
  • Resistance to temperature and humidity cycle shock
  • Low watts loss and high durability

Product Application

  • Power Distribution Unit (PDU)
  • Energy storage device
  • Inverters
  • EV & HEV Power Battery
  • DC drives
  • EV Charging module

Related Products

We offer a wide range of categorized products, each of which has been carefully selected and designed to meet the individual needs of diverse consumers.
Model Interrupting Rating Voltage Rating (V) Ampere Rating (A) Typical Cold Resistance (mΩ) Typical Melting I²t (A²Sec) Dimension (mm) 1.0In Power loss (W) Automotive PDF
10CT10-5A-X 1000Vdc@50000A 1000Vdc 5 35 38.1×10.3mm Yes
10CT10-10A-x 1000Vdc@50000A 1000VDC 10 12.5 120 11.1×38.9mm(Max) Yes
10CT10-30A-x 1000Vdc@50000A 1000VDC 30 3.1 650 11.1×38.9mm(Max) Yes
10CT10-25A-x 1000Vdc@50000A 1000VDC 25 4 560 11.1×38.9mm(Max) Yes
10CT10-20A-x 1000Vdc@50000A 1000VDC 20 5.2 1000 11.1×38.9mm(Max) Yes
10CT10-15A-x 1000Vdc@50000A 1000Vdc 15 7.2 405 11.1×38.9mm(Max) Yes
10CT8-15AS-x 1000VAC/DC@30KA/50KA 1000VAC/DC 15 10x38mm Yes
10CT8-12AS-x 1000VAC/DC@30KA/50KA 1000VAC/DC 12 10x38mm Yes
10CT8-11AS-x 1000VAC/DC@30KA/50KA 1000VAC/DC 11 10x38mm Yes
10CT8-10AS-x 1000VAC/DC@30KA/50KA 1000VAC/DC 10 10x38mm Yes
10CT8-4AS-x 1000VAC/DC@30KA/50KA 1000VAC/DC 4 10x38mm Yes
10CT8-2AS-x 1000VAC/DC@30KA/50KA 1000VAC/DC 2 10x38mm Yes
10CT8-1.5AS-x 1000VAC/DC@30KA/50KA 1000VAC/DC 1.5 10x38mm Yes
10CT8-1AS-x 1000VAC/DC@30KA/50KA 1000VAC/DC 1 10x38mm Yes
10CT8-R500S-x 1000VAC/DC@30KA/50KA 1000VAC/DC 0.5 10x38mm Yes
10CT8-R440S-x 1000VAC/DC@30KA/50KA 1000VAC/DC 0.44 10×38mm Yes
10CT2-10A 200Vdc@50KA 200VDC 10 240 10x28.5mm(Max) Yes
10CT2-15A 200Vdc@50KA 200VDC 15 670 10x28.5mm(Max) Yes
10CT2-20A 200Vdc@50KA 200VDC 20 980 10x28.5mm(Max) Yes
10CT2-25A 200Vdc@50KA 200VDC 25 1900 10x28.5mm(Max) Yes
10CT2-30A 200Vdc@50KA 200VDC 30 900 10x28.5mm(Max) Yes
10CT2-40A 200Vdc@50KA 200VDC 40 1950 10x28.5mm(Max) Yes
10CT2-50A 200Vdc@50KA 200VDC 50 2950 10x28.5mm(Max) Yes
10CT2-63A 200Vdc@50KA 200VDC 63 7400 10x28.5mm(Max) Yes
