Types of Chip Fuses: From Fast-Acting to Time-Lag Models
Introduction

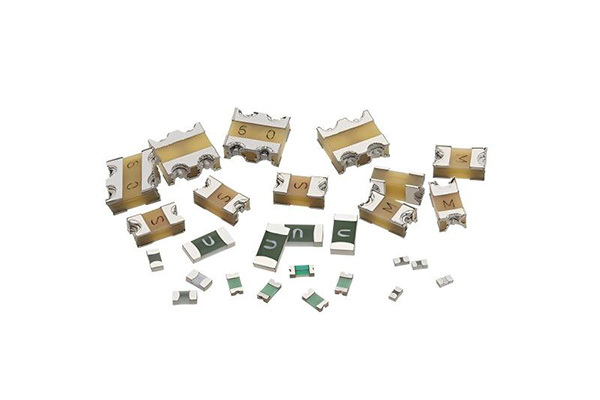

As electronic devices become smaller and more complex, Chip Fuses—also called Surface Mount Fuses (SMD Fuses)—have become the standard solution for protecting circuits against overcurrent and short-circuit failures.
Chip fuses are available in different types (such as fast-acting and time-lag models) and various package sizes (0402,0603,1206,1214 etc.). Selecting the right type and size is crucial for reliable circuit protection.
This article explores the types of chip fuses, their packaging sizes, and how to choose the right one for your application.Types of Chip Fuses
Types of Chip Fuses
Fast-Acting Chip Fuses
Designed to blow quickly when the current exceeds the rated value.
Suitable for circuits with sensitive ICs and low inrush current.
Common in consumer electronics, smartphones, laptops, and portable devices.
Time-Delay (Slow Blow) Chip Fuses
Withstand temporary current surges before blowing.
Useful in circuits with inrush current, such as motors, power supplies, and transformers.
Provide protection while avoiding nuisance trips.
High-Speed Chip Fuses
Designed for high-frequency and high-speed circuits.
Provide very fast interruption, protecting semiconductors, telecom devices, and data lines.
Often used in networking, automotive, and industrial systems.
Chip Fuse Sizes and Ratings
0402 Chip Fuse (1.00 × 0.50 × 0.40 mm)
Ultra-miniature fuse for compact electronic devices.
Ideal for wearables, hearing aids, smartphones, and IoT sensors.
0603 Chip Fuse (1.60 × 0.81 × 0.48 mm)
Slightly larger than 0402, offering better current handling.
Common in chargers, LED drivers, portable electronics.
1206 Chip Fuse (3.20 × 1.60 × 0.75 mm)
Balanced package for medium-current circuits.
Widely used in laptops, consumer electronics, and automotive modules.
1214 Chip Fuse (3.20 × 3.60 × 1.10 mm)
Larger footprint and higher power dissipation capacity.
Suitable for battery protection circuits, automotive electronics, and industrial power systems.
