How To Select The Right Chip Fuse For Your Circuit
Introduction
When designing electronic devices, ensuring proper circuit protection is just as important as selecting ICs or power components. A chip fuse provides reliable overcurrent protection in compact PCB layouts, but choosing the right one requires understanding your circuit’s electrical and environmental conditions.
This guide will explain the key factors to consider when selecting a chip fuse and how to match it with your application.
Understanding Chip Fuses

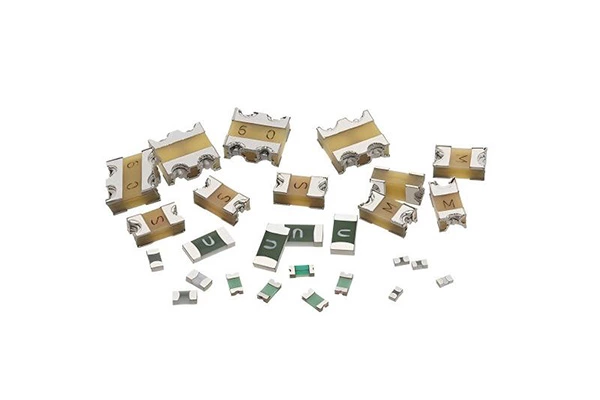

What is a Chip Fuse?
A chip fuse is a surface mount fuse designed for modern PCBs. It interrupts current flow when an overload or short circuit occurs, protecting sensitive components.
Why Use a Chip Fuse?
- Compact package sizes (0402, 0603, 1206, 1214).
- Fast response to overcurrent events.
- Compatible with automated assembly.
Key Factors in Selecting a Chip Fuse
Current Rating
- Defines the maximum continuous current the fuse can handle.
- Choose a rating slightly above the normal operating current to avoid nuisance trips.
Voltage Rating
- Ensure the fuse’s voltage rating is equal to or higher than your circuit’s operating voltage.
- Common ranges: 32V, 63V, 125V, 250V.
Time-Current Characteristics
- Fast-acting fuses: Best for sensitive circuits (e.g., IC protection).
- Slow-blow fuses: Handle inrush currents in motor or power supply circuits.
Package Size
- Small devices (e.g., wearables) use 0402/0603 fuses.
- Industrial or automotive PCBs may require 1206/1214 fuses for higher current capacity.
Breaking Capacity
- Indicates how much fault current the fuse can safely interrupt without damage.
- Select based on worst-case short-circuit scenarios.
Operating Environment
- Consider ambient temperature, humidity, and vibration.
- High temperatures reduce fuse current rating, so derating may be required.
Best Practices for Fuse Selection
- Always test under real circuit conditions, not just datasheet values.
- Apply derating guidelines (e.g., operate at 70–80% of rated current).
- Check UL or IEC certification for compliance.
- Work with trusted suppliers to ensure consistent quality and reliability.
Conclusion
Choosing the right chip fuse for your circuit ensures reliable protection, longer device lifespan, and compliance with safety standards. By considering current, voltage, time characteristics, size, breaking capacity, and environment, engineers can match the fuse to their exact application needs.
As electronic devices continue to evolve, selecting the right fuse will remain a critical step in building safe, efficient, and durable circuits.
