2410FA-R500-W
Products Specifications
- Features
- Electroplated Copper Electrodes, Stable I²t Performance and High Surge Withstand, Sealed Structure for Harsh Environments, Wire-in-Air Design for Safe Interruption
- Breaking Capacity @ Rated Voltage
- 100 A @ 125 VDC
- Mounting Type
- Surface Mount
- Operating Temperature
- -60 ~ 125 ℃
- Voltage Rating
- 125 VDC
- Ampere Rating
- 0.5 A
- Typical Cold Resistance
- 0.225 Ohms
- Typical Melting I ²t (A² Sec)
- 0.1
- Size / Dimension
- 0.24 in x 0.10 in
- Package / Case
- 2410 (6125 Metric)
- Response Time
- Fast Acting / Fast Blow

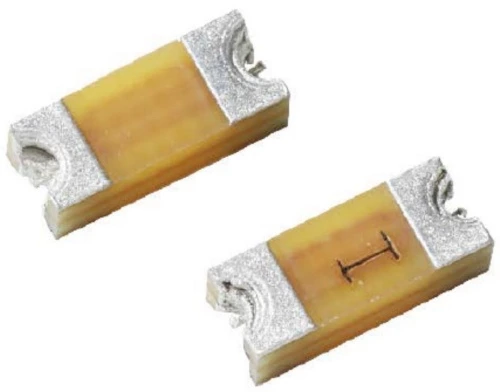

Fast Acting Surface Mount Fuses
2410FA-W Series are wire-in-air surface mount fuses. The maximum breaking voltage is 250V and maximum breaking current is 400A. The product size is small, especially the height direct is only 2.2mm, which can meet the design of limit space.
Electrical Characteristics
| CurrentRating | % of Ampere Rating | Opening Time |
|---|---|---|
| 0.5 ~ 30 A | 100% | 4 hours Min. |
| 200% | 120 Seconds Max. |
Features
- Electroplated copper is used to connect electrodes, with high reliability;
- Wide range of specification: 0.5A-30A;
- Structural characteristics I²T is stable, with strong surge resistance;
- Sealing structure strong resistance to harsh environment;
- Wire-in-air design, safe breaking, no sparks;
- 100% lead-free, halogen-free, RoHS compliant.
Application
- Notebook PC
- Backlight inverter
- Power supply
- Storage system
- Telecom system
- Battery charging circuit protection
- Industrial equipment
Specification
| Product Code |
Current Rating |
Voltage Rating |
Interrupting Rating |
Typical Cold Resistance (ohms) Typ. |
Normal I2t (A2Sec) |
Marking Code |
|---|---|---|---|---|---|---|
| 2410FA-R500-W | 0.5 A | 125 VDC 250 VAC |
100 A @ 125 VDC 100 A @ 250 VAC 300 A @ 48 VDC |
0.225 | 0.10 | A |
| 2410FA-R630-W | 0.63 A | 0.171 | 0.12 | B | ||
| 2410FA-R750-W | 0.8 A | 0.117 | 0.23 | C | ||
| 2410FA-1A-W | 1.0 A | 0.090 | 0.57 | D | ||
| 2410FA-1.25A-W | 1.25 A | 0.070 | 0.70 | E | ||
| 2410FA-1.5A-W | 1.5 A | 0.063 | 0.81 | F | ||
| 2410FA-1.6A-W | 1.6 A | 0.055 | 1.10 | U | ||
| 2410FA-2A-W | 2.0 A | 0.036 | 2.50 | H | ||
| 2410FA-2.5A-W | 2.5 A | 0.030 | 3.30 | I | ||
| 2410FA-3A-W | 3.0 A | 0.024 | 0.9 | J | ||
| 2410FA-3.15A-W | 3.15 A | 0.023 | 1.0 | K | ||
| 2410FA-3.5A-W | 3.5 A | 0.020 | 2.4 | V | ||
| 2410FA-4A-W | 4.0 A | 0.017 | 3.2 | L | ||
| 2410FA-5A-W | 5.0 A | 0.014 | 5.0 | M | ||
| 2410FA-6.3A-W | 6.3 A | 125 VDC | 50 A @ 125 VDC 300 A @ 48 VDC |
0.0118 | 6.1 | N |
| 2410FA-7A-W | 7.0 A | 0.0099 | 9.8 | O | ||
| 2410FA-8A-W | 8.0 A | 0.0082 | 14.2 | P | ||
| 2410FA-10A-W | 10 A | 0.0071 | 22.5 | Q | ||
| 2410FA-12A-W | 12 A | 0.0049 | 43.2 | R | ||
| 2410FA-15A-W | 15 A | 0.0038 | 67.5 | S | ||
| 2410FA-20A-W | 20 A | 72 VDC | 60 A @ 72 VDC 300 A @ 48 VDC 400 A @ 32 VDC |
0.0031 | 116 | T |
| 2410FA-25A-W | 25 A | 0.0024 | 153 | X | ||
| 2410FA-30A-W | 30 A | 0.0019 | 252 | Y |

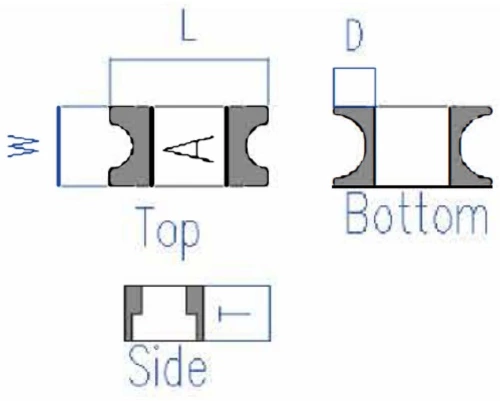

Dimension
Unit: mm
Packaging
- Quantity: 2000pcs
- 12mm wide tape on 178mm(7 inch) diameter reel -specification EIA Standard 481.
| Type | L | W | T | D |
| 2410FA | 6.1±0.2 | 2.5±0.2 | 2.1±0.2 | 1.4±0.35 |

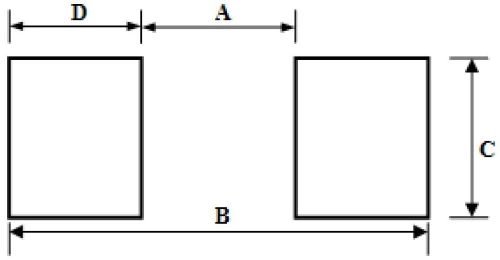

Recommended Land Patterns
Unit: mm
| Type | A | B | C | D |
| 2410FA | 3.0 | 8.0 | 3.0 | 2.5 |
Soldering Parameters
1. Infrared Reflow:
• Temperature: 260°C
• Time: 20 sec Max.
• Recommend Reflow profile

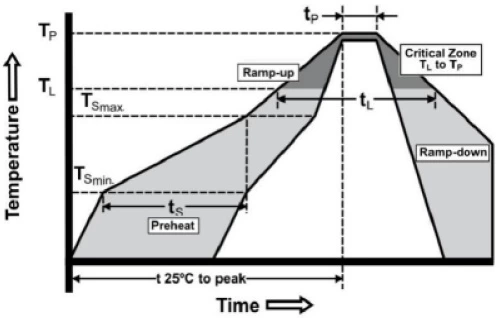

IR Reflow Profile
| Preheat Heat | |
|---|---|
| Temperature Min (Tsmin) | 150°C |
| Temperature Max (Tsmax) | 200°C |
| Time (Tsmin to Tsmax), ts | 60 – 120 seconds |
| Average Ramp-up Rate (Tsmax to Tp) | 3°C/second max. |
| Liquidous Temperature (TL) | 217°C |
| Time at Liquidous (tL) | 60 – 150 seconds |
| Peak Temperature (Tp) | 260°C |
| Time within 5°C of actual Peak Temperature (tp) | 20 seconds |
| Average Ramp-down Rate (Tp to Tsmax) | 6°C/second max. |
| Time 25°C to Peak temperature | 8 minutes max. |

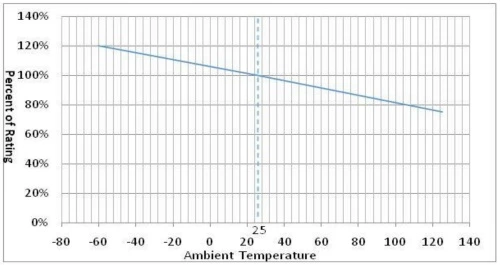

Temperature Derating Curve

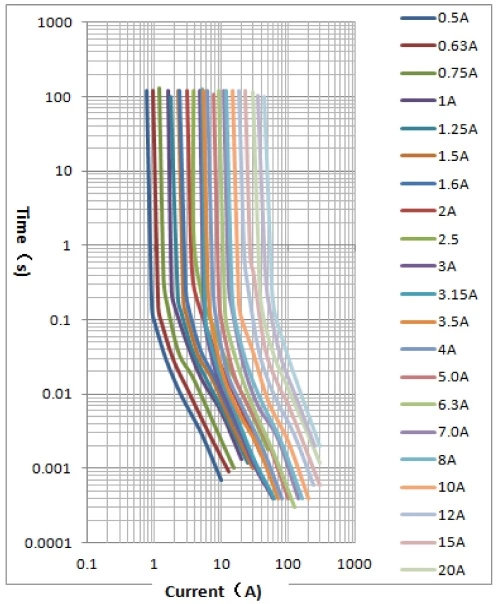

Time Current Curves
