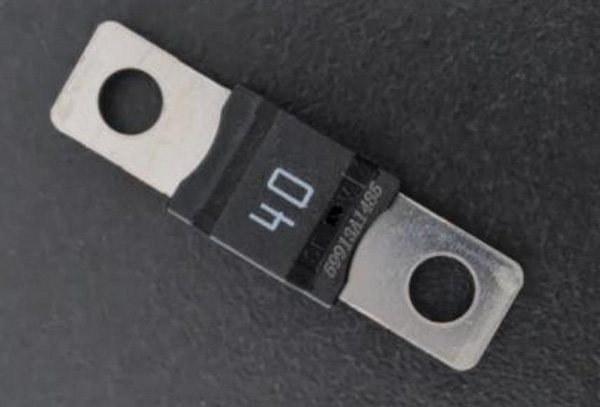

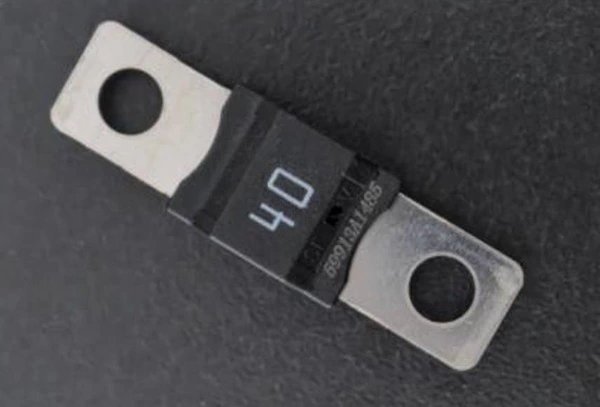

PMD-58V Series

Description

  • Rated Voltage：58VDC
  • Rated Current：30-200A
  • Interrupting Rating: 1500A@58VDC

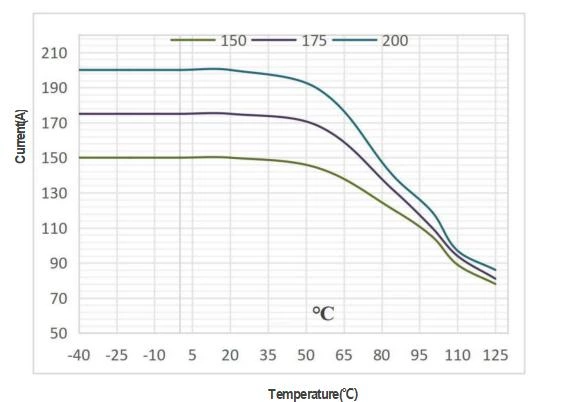

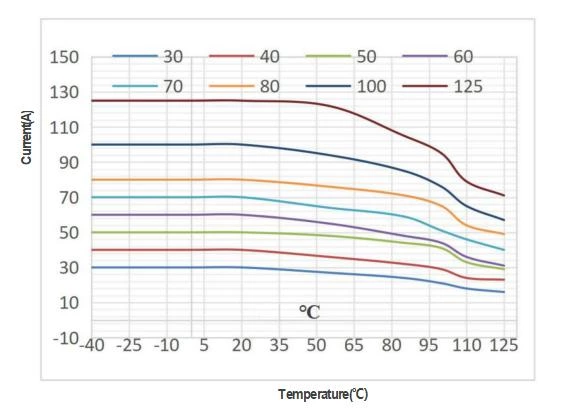

  • Allowable use conditions: -40˚C ~125˚C
  • Recommended installation torque:4~6 Nm(12Nm Max.)/M5, 6~9 Nm(12Nm Max.)/M6
  • Flammability rating ：U.L. 94 V0
  • Standard ：ISO 8820, ISO 16750, GB/T 31465, IATF 16949

PMD-58V Series
