2410BP-30-E
Fast Acting | 2410(6.5x1.6mm)
Brick Fuses
2410BP Series fuse for the small size and good electrical performance, reliability and quality.
Features
- Compatible with reflow
- One time positive disconnect
- RoHS compliant
- Designedd to UL 248-14
Electrical Characteristics
| Amp Rating (A) | % of Amp Rating | Opening Time |
|---|---|---|
| 30A | 100% | 4 Hours Min. |
| 30A | 200% | 0 sec Max. |
Specification
| Part Number |
Ampere Rating (A) |
Voltage Rating / Interrupting Rating | Typical Cold Resistance (mΩ) |
Typical Melting I²t (A²Sec) |
Typical Voltage Drop (mV) |
|
|---|---|---|---|---|---|---|
| 2410BP-30A-E | 30 | 72Vdc @ 500A | 1.10 | 1000 | 50 | |
- DC Interrupting Rating (measured at designated voltage, time constant of less than 50 microseconds, battery source)
- DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃
- Typical Pre-arcing I2 t are measured at 10In Current

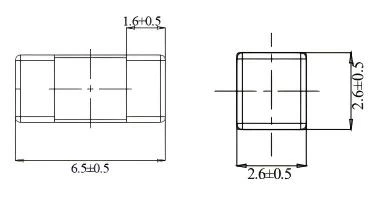

Dimension
Unit: mm
Packaging
- Quantity: 1, 000pcs
- 12mm tape-and-reel per EIA Standard 481.

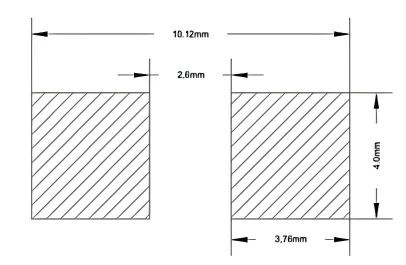

Recommended land pattern (mm)
Note: Minimum copper layer thickness = 100um.
Recommend Stencil thickness is 0.15mm
Soldering Parameters
Infrared Reflow: 260°C, 30 seconds max.

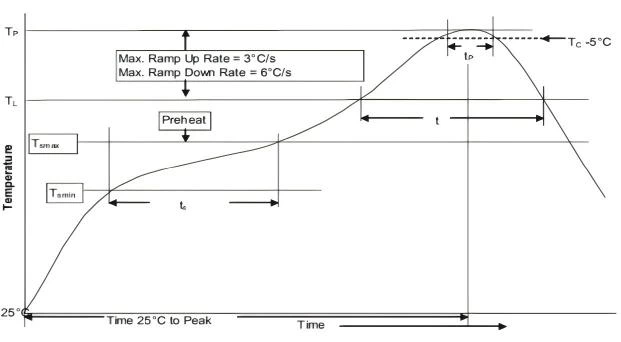

Reflow-Soldering Parameter
| Profile Feature | Lead(Pb) free solder | |
|---|---|---|
| Preheat & Soak | Temperature min. (Tsmin) | 150℃ |
| Temperature max. (Tsmax) | 200℃ | |
| Time (Tsmin to Tsmax) (tS) | 60 – 120 seconds | |
| Average ramp-up rate Tsmax to Tp | 3℃/second max. | |
| Liquidous temperature (TL) | 217℃ | |
| Time at liquidous (tL) | 60 – 150 seconds | |
| Peak package body temperature (TP) | 260℃ | |
| Time within 5℃ of TP (tP) | 30 seconds max. | |
| Average ramp-down rate (TP to Tsmax) | 6℃/second max. | |
| Time (25℃ to Peak Temperature) | 8 minutes max. | |

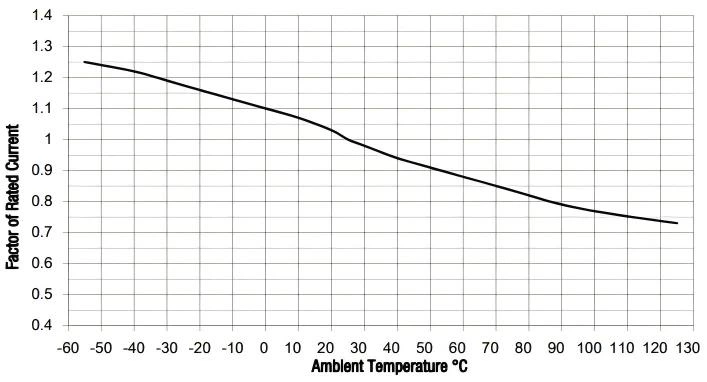

Temperature Derating Curve
- Normal Operating Temperature: 25℃± 2℃
- Operating Temperature: -55℃ to 125℃ with proper correction factor applied.
- Chart of correction factor
Storage Temperature: -55℃ to 125℃

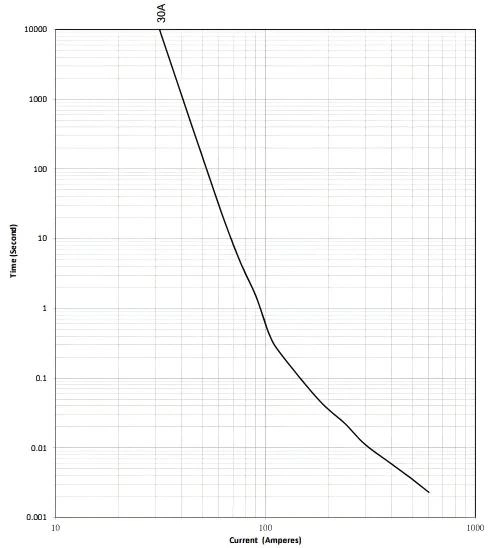

Time Current Curve
