2410LC-R100-D
Products Specifications
- Features
- Surface-Mount Fuse, Silver-Plated Terminals, Wide Current Rating Range
- Breaking Capacity @ Rated Voltage
- 250 VAC @ 50 A
- Mounting Type
- Surface Mount
- Operating Temperature
- -60 ~ 125 ℃
- Voltage Rating
- 250 VAC
- Ampere Rating
- 0.1 A
- Typical Cold Resistance
- 4.3 Ohms
- Typical Melting I ²t (A² Sec)
- 0.02
- Size / Dimension
- 6.1x2.5x2.5mm
- Package / Case
- 2410 (6114 Metric)
- Response Time
- Time Delay / Slow blow
Time Delay Brick Fuses
Features
• Surface Mount Fuse
• Silver plated terminals
• Wide range of current ratings
• RoHS compliant
• Halogen free
Electrical Characteristics
| Amp Rating | % of Amp Rating | Opening Time |
| 0.1 A ~ 7 A | 100% | 4 Hours Min. |
| 200% | 120 sec Max. | |
| 1000% | 10 millisec Min. |
Specification
| Part Number | Rated Current ( A ) | Rated Voltage ( V ) | Interrupt Rating | Nominal Cold Resistance ( Ω ) | Nominal I²t ( A²s ) |
| 2410LC-R100-D | 0.1 | 250 VAC @ 50 A | 4.3 | 0.02 | |
| 2410LC-R125-D | 0.125 | 3.2 | 0.03 | ||
| 2410LC-R150-D | 0.15 | 2.7 | 0.03 | ||
| 2410LC-R160-D | 0.16 | 2.6 | 0.03 | ||
| 2410LC-R200-D | 0.2 | 2.05 | 0.10 | ||
| 2410LC-R250-D | 0.25 | 1.52 | 0.09 | ||
| 2410LC-R300-D | 0.3 | 1.3 | 0.19 | ||
| 2410LC-R315-D | 0.315 | 1.2 | 0.2 | ||
| 2410LC-R375-D | 0.375 | 1.1 | 0.21 | ||
| 2410LC-R400-D | 0.4 | 0.74 | 0.4 | ||
| 2410LC-R500-D | 0.5 | 0.53 | 0.41 | ||
| 2410LC-R600-D | 0.6 | 0.38 | 0.52 | ||
| 2410LC-R630-D | 0.63 | 0.36 | 0.53 | ||
| 2410LC-R700-D | 0.7 | 0.34 | 1.2 | ||
| 2410LC-R750-D | 0.75 | 0.318 | 1.4 | ||
| 2410LC-R800-D | 0.8 | 0.3 | 1.6 | ||
| 2410LC-R1A-D | 1 | 0.141 | 2.2 | ||
| 2410LC-R1.25A-D | 1.25 | 0.12 | 2.4 | ||
| 2410LC-R1.5A-D | 1.5 | 0.082 | 5 | ||
| 2410LC-R1.6A-D | 1.6 | 0.076 | 5.4 | ||
| 2410LC-R2A-D | 2 | 0.044 | 9.6 | ||
| 2410LC-R2.5A-D | 2.5 | 0.04 | 16 | ||
| 2410LC-R3A-D | 3 | 0.032 | 23 | ||
| 2410LC-R3.15A-D | 3.15 | 0.029 | 23 | ||
| 2410LC-R3.5A-D | 3.5 | 0.023 | 35 | ||
| 2410LC-R4A-D | 4 | 0.020 | 53 | ||
| 2410LC-R5A-D | 5 | 0.015 | 74 | ||
| 2410LC-R6A-D | 6 | 0.013 | 102 | ||
| 2410LC-R6.3A-D | 6.3 | 0.012 | 116 | ||
| 2410LC-R7A-D | 7 | 0.011 | 130 | ||

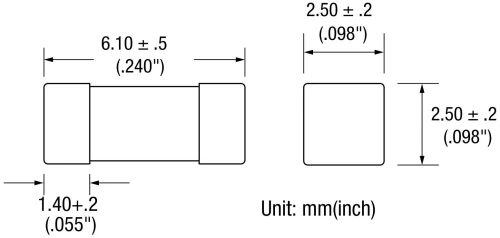

Dimension
Unit: mm

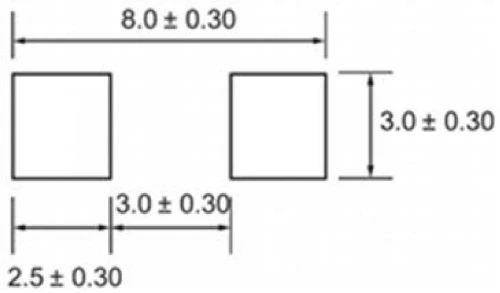

Pad Layout Recommended
Unit: mm
Packaging
Quantity: 1000pcs
12mm tape-and-reel per EIA Standard 481.

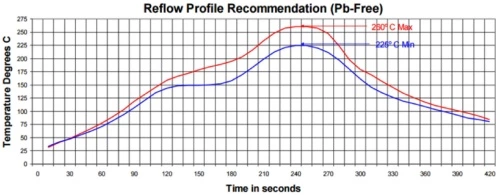

Recommended Solder Curve

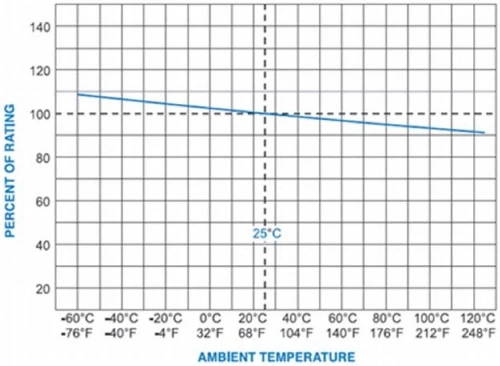

Temperature Derating Curve

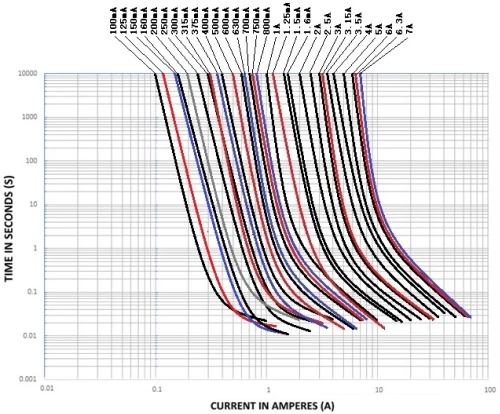

Time Current Curve
For 3.15 A rating parts, please contact PROSEMI FAE or Sales for detailed curve.
