PHS-8420-M Alloy Shunt Resistor
Features
- Electron beam welding process;
- High reliability, high overload capacity, high product precision;
- Wide operating temperature range, low parasitic inductance design;
- NTC temperature sensor, real-time temperature monitoring or temperature drift compensation
- Electrodes are fully nickel-tin plated;
Application
Electrical parameters
| Shunt (PHS842-0M10J-M2M) | |||||||
|---|---|---|---|---|---|---|---|
| series | size | Rated current (A) | Resistance*(μΩ) | Resistance accuracy | Operating temperature (℃) | 20℃~60℃ Temperature Coefficient of Resistance TCR (ppm/℃) |
Maximum current |
| PHS | 8420 | 350 | 100 | ±5% | -40℃~+125 | ±100 | 800A@5s 1200A@1s |
| NTC (NCP18XH103F03RB) | |||||||
|---|---|---|---|---|---|---|---|
| Zero rated resistance R25 (KΩ) |
R25 Tolerance | Temperature coefficient B value (25/50℃) | Working temperature (℃) |
||||
| 10 | 1% | 3380 | -40℃~+125 | ||||
Series naming
PHS 8420 - 0M10 J - M2M
【1】 【2】 【3】 【4】 【5】
【1】Series Name: PHS Series Shunt;
【2】Product size: 8420: length 84mm, width 20mm;
【3】Resistance: 0M10: 100μΩ;
【4】Resistance accuracy: J: ±5%;
【5】Internal identification code: M2M: manganese copper + nickel-tin plated electrode + PCB board connector.

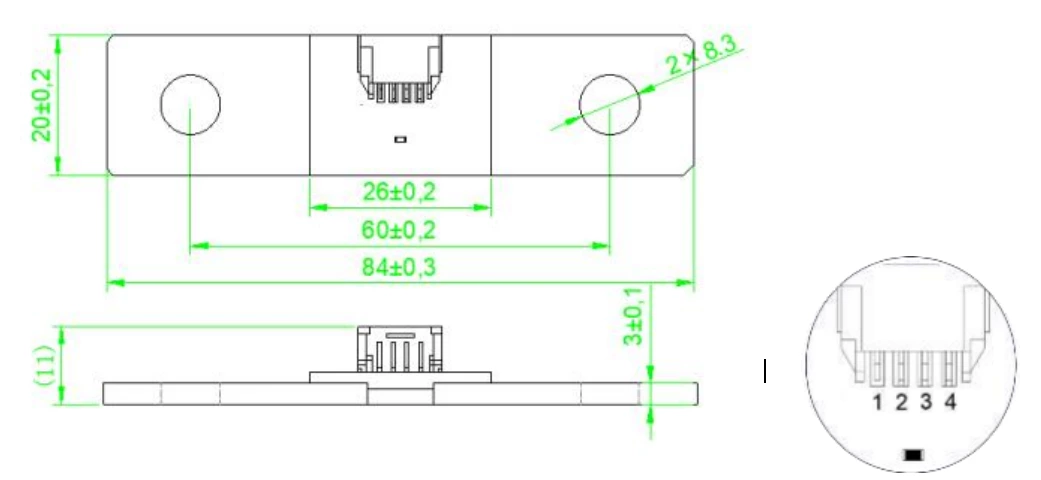

Product size
| Manufacturer | Part Number | Pin Definition |
|---|---|---|
| MOLEX | 502352-0400 | 1: TEMP P |
| 2: SHUNT_P | ||
| 3: SHUNT_N | ||
| 4: TEMP N |
Packaging
Bag packing, 1pcs per bag or customized
