1206FA-25AD
Fast Acting | 0.126x0.064 inch
Thick Film Chip Fuses
1206FA-xxxD Series are the fuses set the industry standard for performance, reliability and quality. The solder-free design provides excellent on-off and temperature cycling characteristics during use and also makes our SMD fuses more heat and shock tolerant than typical subminiature fuses.
Features
- High inrush current withstanding capability
- AEC-Q200 Automotive Grade Certified
- Compatible with reflow and wave solder
- Ceramic and glass construction
- Excellent environmental integrity
- One time positive disconnect
- Lead Free and Halogen free material
Appications
- Flat panel displays and televisions
- Automotive infotainment and ECU
- Computer servers
- Portable electronics
- Mobile device chargers
- Power Battery Packs
Electrical Characteristics
| Amp Rating | % of Amp Rating | Opening Time |
|---|---|---|
| 20~30A | 100% | 4 hours min. |
| 20~30A | 350% | 5 seconds max. |
| 20~30A | 1000% | 0.2 ms – 20 ms |
Specification
| Part Number | Ampere Rating (A) | Voltage Rating / Interrupting Rating | Typical Cold Resistance (Ohms) | Typical Melting I²t (A²Sec) | Typical Voltage Drop (V) | Marking Code | |
|---|---|---|---|---|---|---|---|
| 1206FA-20AD | 20.0 | 32Vdc @ 150A 24Vdc @ 300A |
0.0034 | 45 | 0.080 | Q | |
| 1206FA-25AD | 25.0 | 0.0016 | 54 | 0.090 | L | ||
| 1206FA-30AD | 30.0 | 0.0013 | 90 | 0.090 | Z | ||
- DC Interrupting Rating (Measured at rated voltage, time constant of less than 50 microseconds, battery source)
- DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃
- Typical Pre-arcing I2 t are measured at 10In Current Choice fuse for surge application (USB charger etc.), make sure the I2 t of fuse is 4 times than surge.
- Specifications are subject to change without notice. Application testing is strongly recommended.
Dimension
Unit: mm/inch
Pad layout
Packaging
- Quantity: 3 000pcs
- 8mm wide tape on 178mm(7 inch) diameter reel -specification EIA Standard 481.
Soldering Parameters
Wave Soldering: 260°C, 10 seconds max.
Infrared Reflow: 260°C, 30 seconds max.
IR Reflow Profile
| Preheat Heat | |
|---|---|
| Temperature Min (Tsmin) | 150°C |
| Temperature Max (Tsmax) | 200°C |
| Time (Tsmin to Tsmax), ts | 60 – 120 seconds |
| Average Ramp-up Rate (Tsmax to Tp) | 3°C/second max. |
| Liquidous Temperature (TL) | 217°C |
| Time at Liquidous (tL) | 60 – 150 seconds |
| Peak Temperature (Tp) | 260+0/-5°C |
| Time within 5°C of Peak (tp) | 10 – 30 seconds |
| Average Ramp-down Rate (Tp to Tsmax) | 6°C/second max. |
| Total Time (25°C to Peak) | 8 minutes max. |
Temperature Derating Curve
- Normal ambient temperature: 23+/-3℃
- Operating temperature: -55 ~ 150℃, with proper correction factor applied

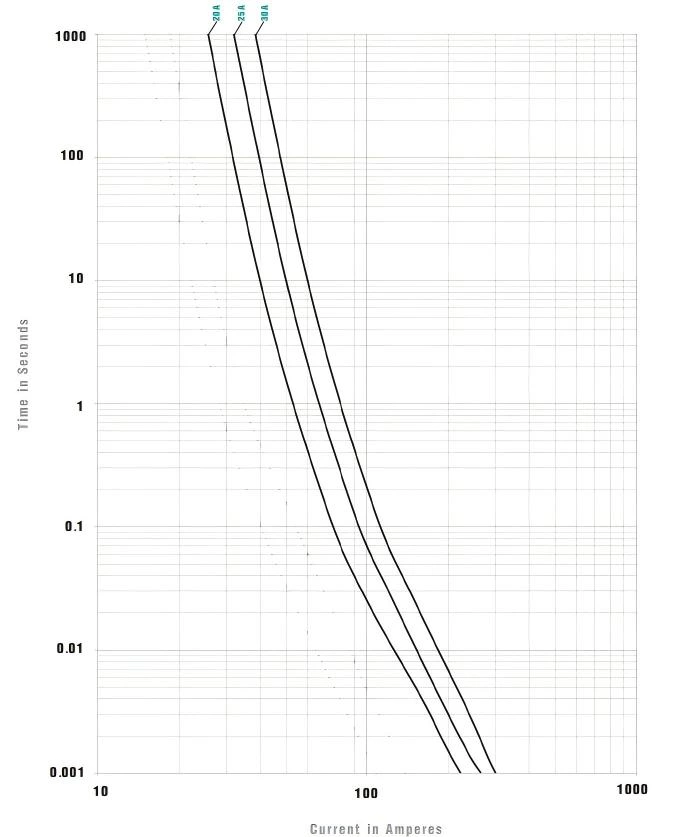

Average Time Current Curves
