Ceramic Tube Fuses

Ceramic Tube Fuses has excellent cycling capability and AC & DC performance, low watt losses with less heating and power consumption in circuit. Low I²t and peak let-through currents meet most semiconductor requirements.

Ideal for a wide range of industries, including automotive, industrial, power supplies, and consumer electronics, the PROSEMI Ceramic Tubu Fuse is known for its high breaking capacity, robust construction, and excellent temperature stability. Its ceramic body provides enhanced resistance to heat and vibration, making it a reliable choice in demanding environments.

Download Product Files Contact Us For More Info
Ceramic Tube Fuses

Features And Benefits

  • Compact size 5x20mm / 6x32mm
  • Special Engineering Material tube
  • Lead free and RoHS compliant
  • Designed to UL 248-1
  • Various installation form applied to various locations

Product Application

  • Uninterruptible Power Supplies (UPS)
  • Digital Meter
  • Three-phase Power Supplies
  • Industrial Power
  • Power Battery Packs
  • New Energy Vehicles

Related Products

We offer a wide range of categorized products, each of which has been carefully selected and designed to meet the individual needs of diverse consumers.
Model Interrupting Rating Voltage Rating (V) Ampere Rating (A) Typical Cold Resistance (mΩ) Typical Melting I²t (A²Sec) Dimension (mm) 1.0In Power loss (W) Automotive PDF
6CT5-30A 250Vac@1000A 150Vdc@1000A 250VAC 30 2.5 1450 6x32mm Yes
6CT5-35A 250Vac@1000A 150Vdc@1000A 250VAC 35 2 2350 6x32mm Yes
6CT5-40A 250Vac@1000A 150Vdc@1000A 250VAC 40 1.65 3100 6x32mm Yes
6CT5-50A 250Vac@1000A 150Vdc@1000A 250VAC 50 1.23 7350 6x32mm Yes
6CT6-10A 500VAC@30KA 500VDC@20KA 500VAC/DC 10 17.1 100 6x32mm No
6CT6-12A 500VAC@30KA 500VDC@20KA 500VAC/DC 12 12.3 140 6x32mm No
6CT6-15A 500VAC@30KA 500VDC@20KA 500VAC/DC 15 8 66 6x32mm No
6CT6-16A 500VAC@30KA 500VDC@20KA 500VAC/DC 16 8 62 6x32mm No
6CT6-20A 500VAC@30KA 500VDC@20KA 500VAC/DC 20 5.5 120 6x32mm No
6CT6-25A 500VAC@30KA 500VDC@20KA 500VAC/DC 25 4.6 200 6x32mm Yes
6CT6-30A 500VAC@30KA 500VDC@20KA 500VAC/DC 30 3.7 270 6x32mm No
6CT7-10A 500Vac/dc@1000A 500VAC/DC 10 17.1 100 6x32mm Yes
6CT7-12A 500Vac/dc@1000A 500VAC/DC 12 12.3 140 6x32mm Yes
6CT7-15A 500Vac/dc@1000A 500VAC/DC 15 8 66 6x32mm Yes
6CT7-16A 500Vac/dc@1000A 500VAC/DC 16 8 62 6x32mm Yes
6CT7-20A 500Vac/dc@1000A 500VAC/DC 20 5.65 125 6x32mm Yes
6CT7-25A 500Vac/dc@1000A 500VAC/DC 25 3.8 390 6x32mm Yes
6CT7-30A 500Vac/dc@1000A 500VAC/DC 30 3.1 600 6x32mm Yes
6CT8-20A 500Vac@1000A 500VAC 20 5.1 268 6x32mm Yes
6CT8-25A 500Vac@1000A 500VAC 25 4 465 6x32mm Yes
6CT8-30A 500Vac@1000A 500VAC 30 3 873 6x32mm Yes
About Us

PROSEMI TECHNOLOGY

Prosemi Technology, as a leading company in the field of precision current sensing components, is dedicated to providing customers with high-performance and high-reliability solutions. Our precision alloy current-sensing resistors, including SMD chip resistors and shunt resistors, are designed for a variety of applications, helping your products achieve accurate current detection and efficient energy management.

High-Quality Products

High-Quality Products

We provide a wide range of outstanding electronic components that are integral to countless applications. Every product is a result of state-of-the-art technology combined with stringent quality control processes to ensure reliability and performance.
Competitive Advantages

Competitive Advantages

Enjoy exclusive access to competitively priced products along with ongoing support and training from our dedicated team. We help you stay ahead by keeping you updated with the latest trends and technology advancements within the industry.
Prompt and Reliable Delivery

Prompt and Reliable Delivery

With our streamlined supply chain and logistics expertise, you receive all products on time, maintaining the highest level of customer satisfaction and trust.

Relevant Cases

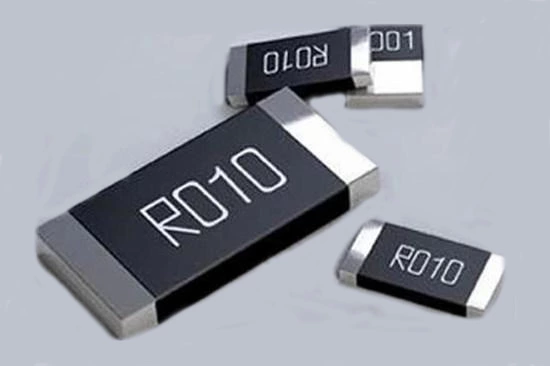

Detailed Explanation of the Working Principle of Resistors: A Beginner's Guide
