6CT3-63A xxx

Features

  • Time Delay, high breaking capacity
  • Ceramic tube, Silver plated copper cap construction
  • Designed to UL248-1
  • RoHS and Lead Free materia

Electrical Characteristics

Current Rating of Ampere Rating Opening Time
63A 100 4hours Min.
200 120 sec Max.

Specifications

Part Number Current Rating Voltage Rating Interrupting Rating Typical Cold Resistance (mOhms) Typical Pre-Arcing I2t (A2Sec)
6CT3-63A xxx 63A 63VDC @ 10000A 56VDC @ 20000A 0.74 7500

1 DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃ .

2 Typical Pre-arcing I2t are measured at 10In Current.

3 xxx = Axial lead length / Terminal code.

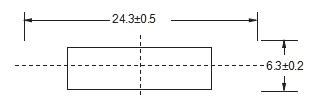

Dimension(Unit:mm)

Cylindrical

6CT3-63A xxx

Packaging

Cylindrical: 500 pcs in one carton. Leaded: 200 pcs in one bag.
6CT3-63A xxx

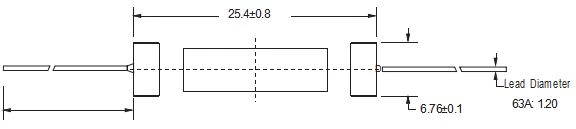

The length of the lead

38.00 ±1.0 Ordering P/N: 6CT3-xxx E 50.00 ±2.0 Ordering P/N: 6CT3-xxx ME

Flush bolt-on, ordering P/N : 6CT3-xxA-TB

6CT3-63A xxx

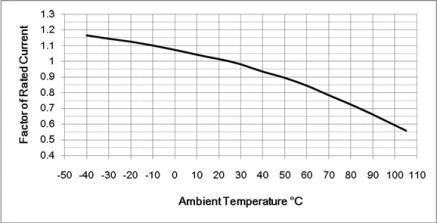

Temperature Rerating Curve

6CT3-63A xxx

Time-Current Curves

6CT3-63A xxx
