6CT8-25A
Fast Acting | 6x32mm
Ceramic Tube Fuses
Features
- High inrush withstand capability, high breaking capacity under 500VAC.
- Special Engineering Material tube, Silver plated cap construction.
- High breaking capacity for high energy application.
- RoHS and Lead Free material.
Specifications
| Part Number | Voltage Rating | Current Rating | Interrupting Rating (A) |
Typical Cold Resistance (mOhms) | Typical Pre-Arcing I²t (A²sec) |
|---|---|---|---|---|---|
| 6CT8-20Axxx | 500VAC | 20A | 1000 10000* |
5.1 | 268 |
| 6CT8-25Axxx | 500VAC | 25A | 4.0 | 465 | |
| 6CT8-30Axxx | 500VAC | 30A | 3.0 | 873 |
1 DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃.
2 Typical Pre-arcing I²t are measured at 10In Current.
3 Self-certified for 500Vac/10000A Breaking Capacity. 4 xxx = Axial lead length.
Dimension(Unit/mm)
Cylindrical
Packaging
Cylindrical fuses: 250pcs per box
38 mm Axial Lead Fuses: 75pcs per box
50mm Axial Lead Fuses: 200pcs per bag
Axial leaded
The length of the lead
38.00 ±1.0 Ordering P/N: 6CT6-xxx E
50.00 ±2.0 Ordering P/N: 6CT6-xxx ME
Temperature Rerating Curve
Wave Soldering Parameters
Solder Pot Temperature: 270°c Max.
Solder Dwell Time: 10s Max.
Recommended Hand Solder Parameters
Solder Iron Temperature: 350°C+/- 5°C
Heating Time: 5s Max.
Operating Temperature Range
- 55°C to + 125°

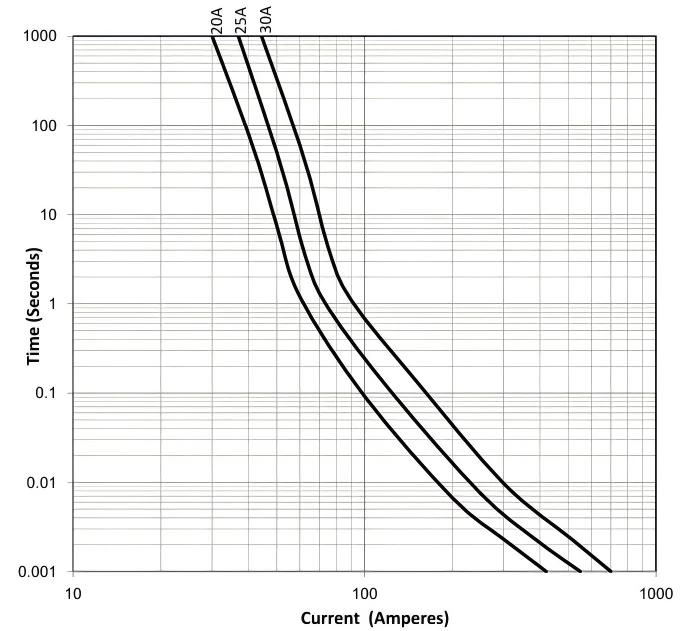

Time-Current Curves
