ESK1803-100A-K6
AC Fuse for ESS/Charging
Ceramic Tube Fuses
Description
- AC fuse for EV Charging/ESS
- Stud-mount
- 700VAC ideal for Charging & ESS application
- Design refer to UL248-1/248-13
Specifications
| Part Number | Rated Current (A) | Interrupting(KA) @ Rated Voltage(Vac) | Typical Pt (MS) |
Typical Power Loss (W)
|
||
|---|---|---|---|---|---|---|
| Pre‑arcing | Total @700VAC | @ 0.5In | @ 1.0In | |||
| ESK1803‑100A‑K6 | 100 | 50kA @ 700Vac | 2280 | 17500 | 3.3 | 19.6 |

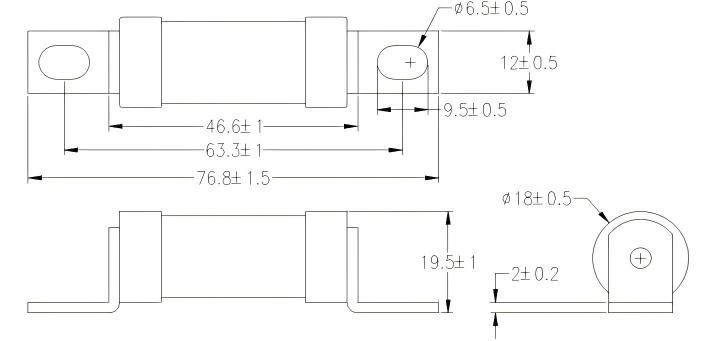

Dimention(unit: mm)
Note: recommend tighten torque: M6 – 6.0+/-1.0 Nm;
Time Current Curve
Transportation and Storage
During transportation and storage, should avoid water seepage and mechanical damage.
Operating Conditions
Where the following conditions apply, fuses complying with this standard are deemed capable of operating satisfactorily without further qualification.
- Normal temperature: -5℃ to 40℃;
- The altitude of the site of installation of the fuses does not exceed 2000m above sea level;
- The air is clean and its relative humidity does not exceed 50% at the max. temperature of
- 40℃; Higher relative humidities are permitted at lower temperatures, e.g. 90 % at 20℃;
- Under these conditions, moderate condensation may occasionally occur due to variation in temperature. For operation condition other than above, please contact manufacturer.
Vibration
Meet JASO D622:2006 Section 6.3.3 Vibration durability test requirement, can be use on Electrical Vehicle application.

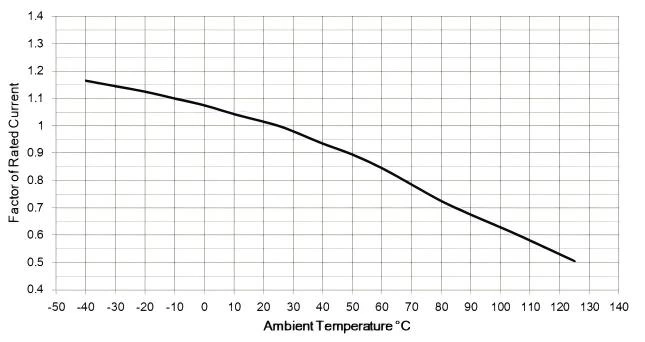

Temperature Re-Rating Curve
Operating Temperature: -40°C to +125°C, with proper re-rating factor applied
