5CI-10A
Special Fuse-link
with indicator(5×25mm)
5CI-10A
Volts-264VAC Amps-10A
Description
- Rated Voltage：Below 264V at 50/60Hz
- Rated Current：10A
- Operating Temperature Range：- 40˚C to + 125˚C
- Interrupting Rating：25kA @ 264 VAC at 50/60Hz
- Compression spring force: 6.12N±0.5 Elastic
- Coefficient: 2.04N/mm

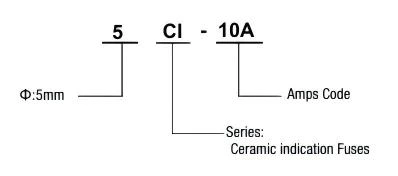

Part Numbering System
Functional Characteristics
| Test Current | Opening Time | |
|---|---|---|
| Min. | Max. | |
| 100% | 3,600s | --- |
| 210% | --- | 1,800s |
| 275% | 0.75s | 80s |
| 400% | 0.15s | 5s |
| 1000% | 0.01s | 0.15s |
Specifications
| Assembly P/N |
Current Rating In(A) |
Voltage Rating Un(V) |
Typical Cold. Resistance (mOhms) |
Typical Voltage Drop (mV) |
Pre-arcing I²t (A²Sec) |
Operating I²t (A²Sec) |
|---|---|---|---|---|---|---|
| 5Cl-10A | 10 | 264 | 10 max | 150 max | 300 min | 350 min |
Product Dimension

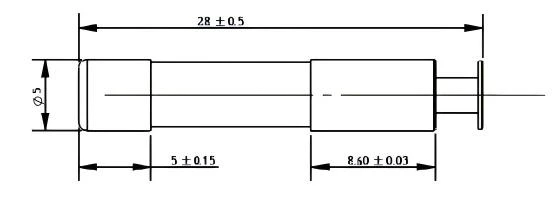

Before fuse

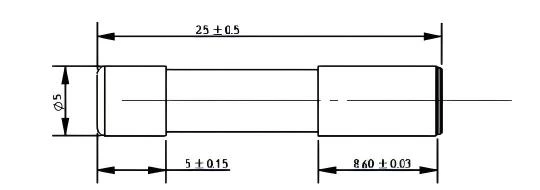

After fusing
*Special statement: the parameters provided in this product manual are the test results under standard conditions, only for customers as a type selection reference, if there is a difference between the actual conditions and standard conditions, please contact our technical staff. Our company reserves the right to update, change and modify the information in the data sheet without notice. The actual technical parameters of the product shall be subject to the technical specification formally provided when ordering.
