H8SA-200A-TA
800Vdc Square Body Fast Acting Fuse
H8SA Series
Description
- Ultra compact size
- Designed and tested to UL248-20, ISO 8820-8 & GB/T31465.6
- Fast acting fuse for EV/HEV,Charging point and Energy storage battery Application
- Higher interrupting rating protects
- RoHS compliant
- Execllent DC performance
Specifications
| Part Number | Rated Current (A) |
Rated Voltage (Vdc) |
I²t (A²S) Melting Pre-arc |
Power Loss At 1.0In (W) |
|---|---|---|---|---|
| HBSA–100A–TA | 100 | 800 | 3,003 | 20 |
| HBSA–150A–TA | 150 | 800 | 9,015 | 24 |
| HBSA–200A–TA | 200 | 800 | 20,560 | 31 |
- Interrupting rating 50kA@800Vdc
- Operating ambient temperature range：-40°C to +125°C

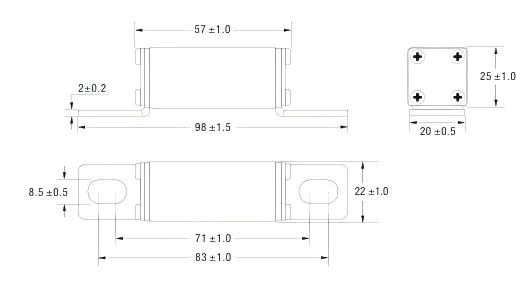

Dimension (mm)

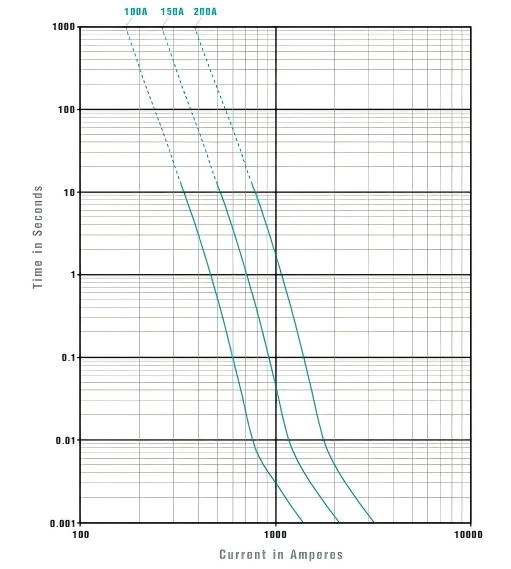

Time-Current Curve
