HMSD15-600A-T
150Vdc Square Body Fuse
HMSD15 Series
Description
- DC fuse for EV/HEV/ESS;
- Stud-mount, optional for other installation;
- 150Vdc ideal for EV/HEV/ESS application；
- Excellent DC performance；
- Design to EV fuse standard UL248-20 ;
- Reliability performance design refer to ISO8820-8&GB/T31465.6;
- Comply RoHS directive.
Specifications
| Part Number | Rated Current (A) |
Rated Voltage (Vdc) |
Breaking Capacity (A) |
Power Loss At 1.0In (W) |
|---|---|---|---|---|
| HMSD15-600A-T | 600 | 150 | 50000 | 66 |
| HMSD15-700A-T | 700 | 50000 | 75 |
Temperature Rise ：<50K with 50% of rated current 50%

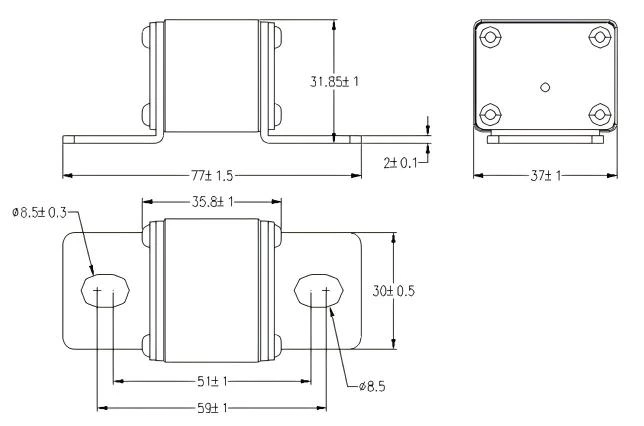

Dimension (mm)
Note: Recommend tightening torque is 12+/-1.0Nm (M8);

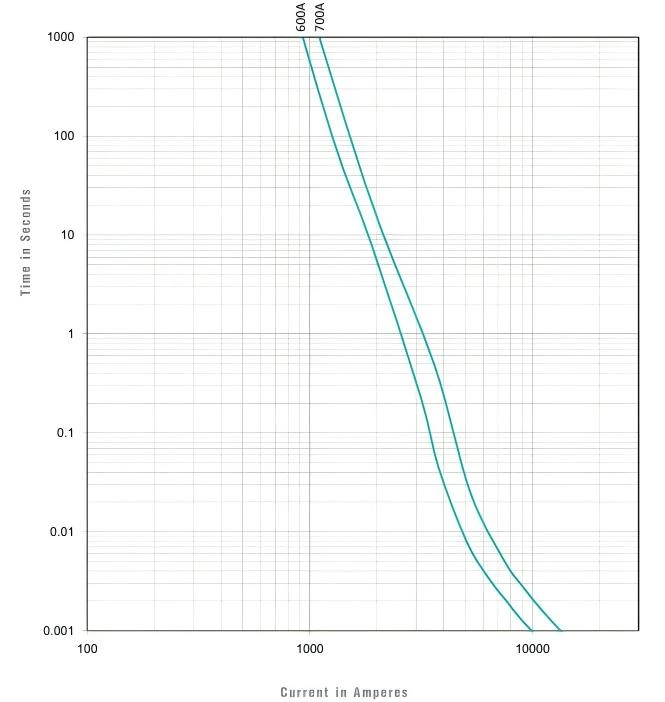

Time-Current Curve
Transportation and Storage
During transportation and storage, should avoid water seepage and mechanical damage.
Conditions for operation in service
Where the following conditions apply, fuses complying with this standard are deemed capable of operating satisfactorily without further qualification.
- Normal temperature: -5℃ to 40℃;
- The altitude of the site of installation of the fuses does not exceed 2000 m above sea level;
- The air is clean and its relative humidity does not exceed 50% at the maximum temperature of 40℃;
- Higher relative humidities are permitted at lower temperatures, e.g. 90 % at 20℃;
- Under these conditions, moderate condensation may occasionally occur due to variation in temperature.
For operation condition other than above, please contact manufacturer.
Vibration
Meet UL248-20 Section 8.6.2.3 Vibration Test C requirement, can be use on Electrical Vehicle application.

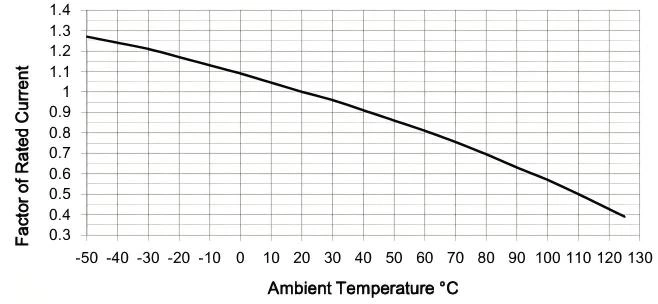

Temperature Rerating Curve
Operating Temperature: -40°C to +125°C, with proper rerating factor applied
