HMSD50-500A-T
High Speed Fuses
HMSD50-xxxA-T Series
Amps- 400 to 500A
Description
- Rated Voltage：500Vdc
- Rated Current：400-500A
- Breaking Capacity: 50kA@500Vdc ;
- DC fuse for EV/HEV/ESS;
- High interrupting capacity;
- Design to EV fuse standard UL248-20；
- Reliability performance design refer to ISO8820-8&GB/T31465.6；
- Comply RoHS directive
Part Numbering System
Electrical Characteristics
| Part number | Rated Current (A) |
Rated Voltage (VDC) |
Breaking Capacity (A) |
0.5In Power loss 0.5In (W) |
|---|---|---|---|---|
| HMSD50-400A-T | 400 | 500 | 50000 | 10.6 |
| HMSD50-450A-T | 450 | 11.5 | ||
| HMSD50-500A-T | 500 | 12.2 |

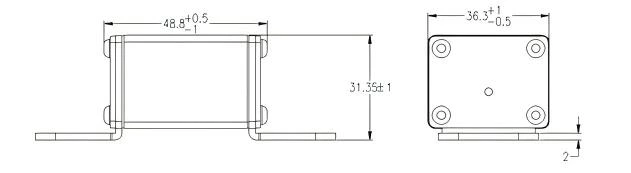

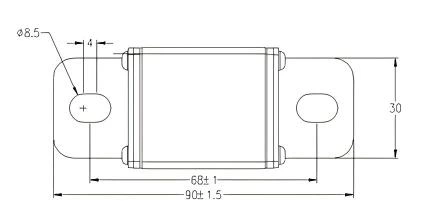

Product Dimension
Unit: mm

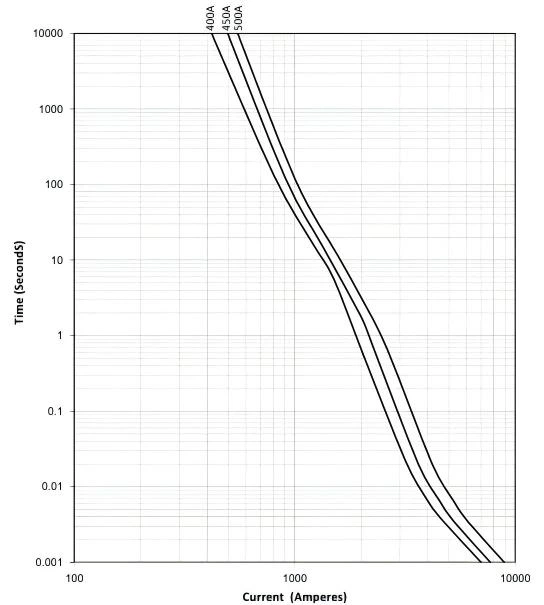

Time Current Curve
Transportation and Storage
Avoid heavy weather attack and mechanical damage;
Operating Conditions
Where the following conditions apply, fuses complying with this standard are deemed capable of operating satisfactorily without further qualification.
- Normal temperature: -5℃ to 40℃;
- The altitude of the site of installation of the fuses does not exceed 2 000 m above sea level;
- The air is clean and its relative humidity does not exceed 50% at the maximum temperatureof 40℃;
- Higher relative humidities are permitted at lower temperatures, e.g. 90 % at 20℃;
- Under these conditions, moderate condensation may occasionally occur due to variation in temperature.

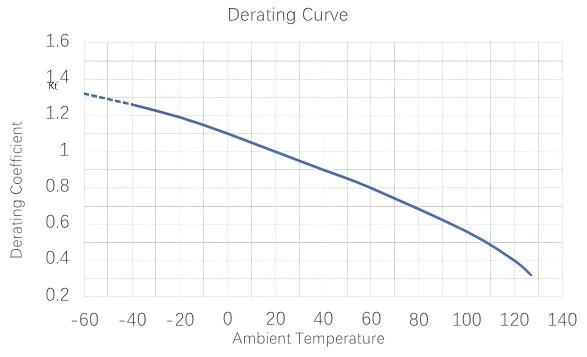

Temperature Rerating Curve
Operating Temperature: -40°C to +105°C, with proper rerating factor applied
