LMP25 Current Sense Resistor

LMP25

Description

  • Proprietary processing technique produces extremely low resistance values
  • Very low inductance
  • Low thermal EMF
  • Metallic Material

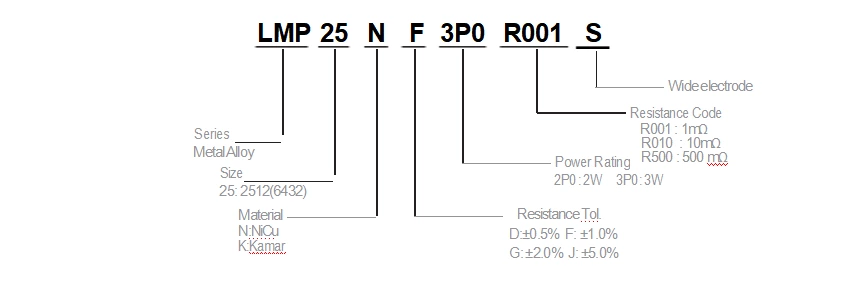

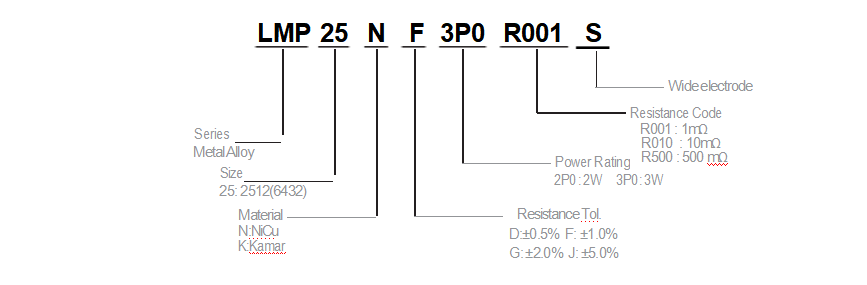

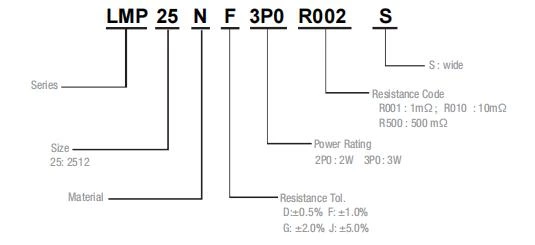

Part Numbering System

LMP25

Parameter Standard
Power Rating 1mΩ~100mΩ : 3W
1mΩ~500mΩ : 2W
Resistance Value 1~500mΩ
Operating Temperature Range -55 to +170°C
Component Temperature Coefficient (TCR) ± 50 ppm/°C
Maximum Working Voltage (V) (P × R)¹/²
Rating Current (A) (P / R)¹/²

P=Power Rating; R=Resistance Value

Standard Electrical Specifications

Type   Rating
Power at
  70℃
T.C.R.
(ppm/℃)
Resistance
Range(mΩ)
±0.5%(D)
±1.0%(F)
±2.0%(G)
±5.0%(J)
Meterial Electrode Operating
Temperature(℃)
LMP25 2W 50  101-500 Alloy R101-R500 -55~+170℃
2W&3W 50  1-4 R001-R004:(S)
2-100 R002-R100

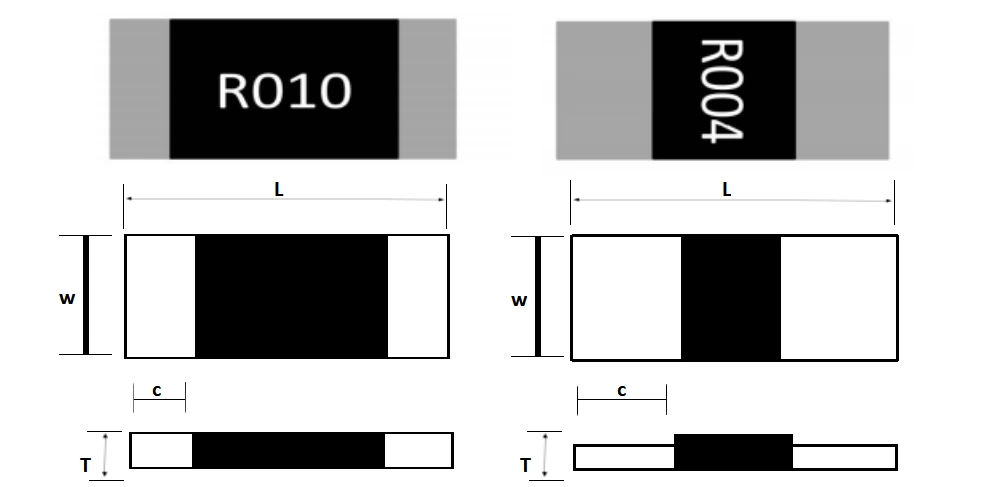

construction

LMP25

Unit: Millimeters

Type Power L W C t
LMP25 2W&3W 6.4 ±0.2 3.2 ±0.2 0.95±0.25  0.9±0.2
2.1±0.25 (s)

Recommended land pattern

LMP25

Unit: Millimeters

Resistance Range ( Ω ) a b L
0.001-0.004(s) 4.0±0.1 3.1±0.1 1.3±0.1
0.002~0.500 4.0±0.1 2.1±0.1 4.1±0.1

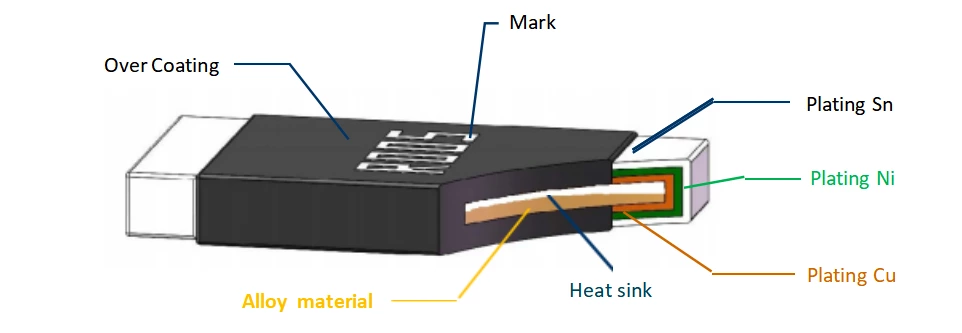

Product structure diagram

LMP25

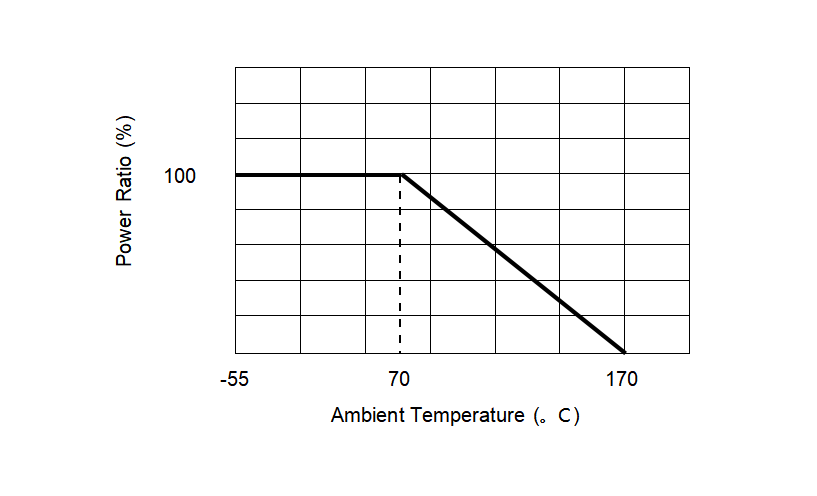

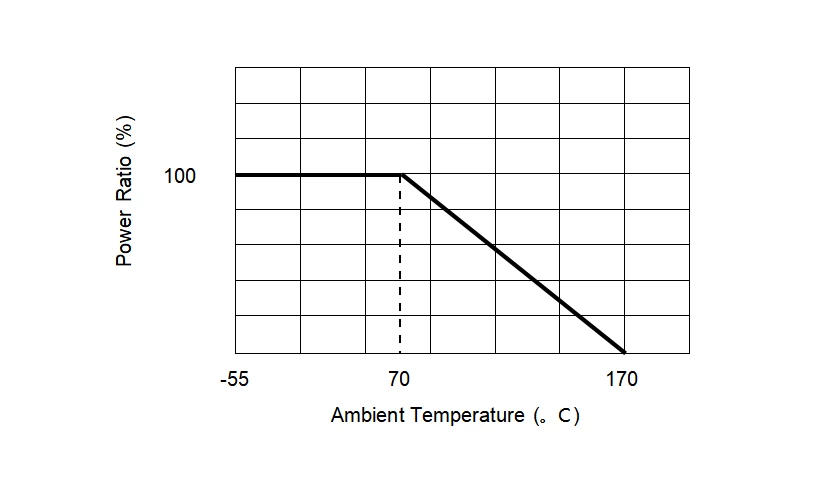

Power Derating Curve

For resistors operated in ambient temperatures 70°C, power ratingshall bederated inaccording with the curve below:

LMP25

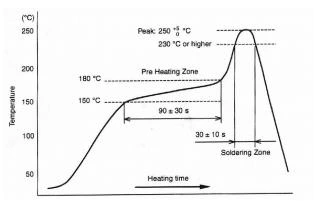

IR Reflow-Soldering Profile

LMP25

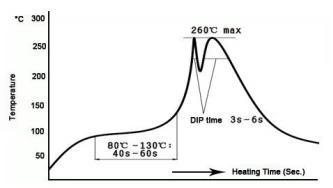

Wave- Soldering Profile

LMP25

Product Characteristics

Item Test condition/Methods Limited Standard
Temperature coefficient
of resistance
TCR=(R-Ro)/Ro(T2-T1)X10⁶
Ro:resistance of room temperature
R:resistance of 125℃
T1:Room temperature
T2:Temperature at 125℃
Refer to Spec MIL-STD-202
Method 304
Short time Overload Apply overload for 5 seconds and measure the
resistance change rate after standing for 24 hours
5 times the rated power for 5 seconds
≤±0.5% MIL-R-26E
Resistance to
Soldering Heat
260℃±5℃ time:10sec±1sec ≤±0.5% MIL-STD-202
Method 210
Temperature Cycling -55℃ /+125℃,30min,1000 cycles ≤±0.5% MIL-STD-202
Method107G
Low temperature
Storage
-55℃±2℃ for 1000hours,No power ≤±0.5% MIL-STD-26E
High Temperature
Storage
170℃ for 1000hours,No power ≤±1% IEC6011501-4.25
Bias Humidity +85℃,85%RH,5%bias,1000hours ≤±0.5% MIL-STD-202
Method103
Solderability 245±5℃,3±1sec At least 95%of
surface area of
electrode shall be
covered with new
solder
IEC60115-1-4.17
JIS-C5201-4.17
Operational life 70℃±2℃,1000 hours,at rated power 1.5 hours
“ON”,0.5 hours  "OFF”
≤±1% MIL-STD-202
Method 108
Resistance to
solvent
Soak in 20~25℃ isopropyl alcohol solvent 60±5
seconds,take it out and stand for more than 24
hours,measure the resistance change rate.
≤±0.5% JIS-C5201
Insulation Resistance 100V DC for 1 minute >100MQ JIS-C5201
Joint Strength
of Solder
Weld into the bending test plate,place on the
bending test machine,press the center of the test
plate,and measure the resistance change rate
under load.
≤±0.5% JIS-C5201

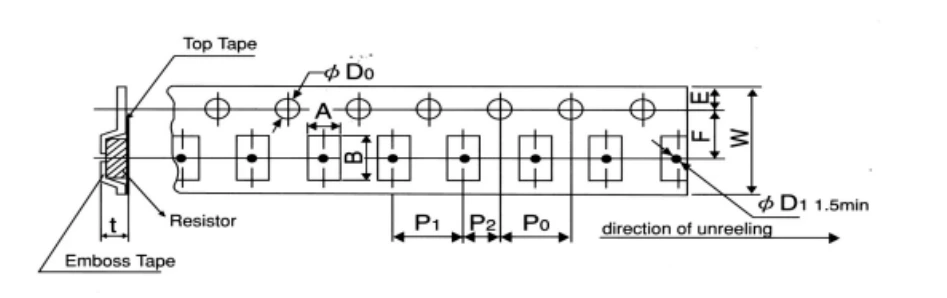

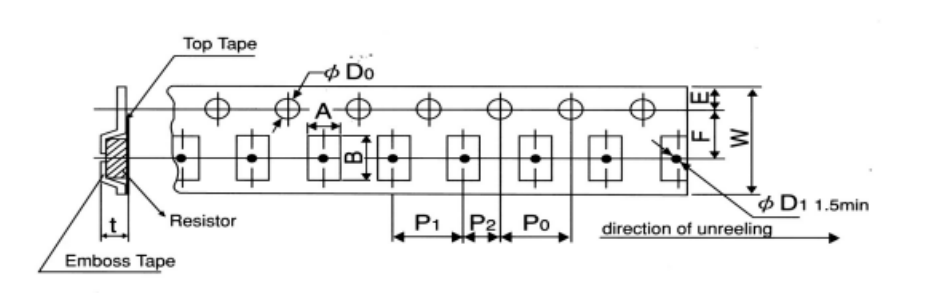

Tapping & Package

LMP25

  Type   Pack A ±0.2 B ±0.2 D0 +0.5-0 E ±0.1 F ±0.05 P0 ±0.1 P1 ±0.1 P2 ±0.1 W ±0.2 D1 ±0.05 T ±0.15
2512 Emboss 3.60 6.90 1.50 1.75 5.50 4.00 4.00 2.00 12.00 1.50 1.20

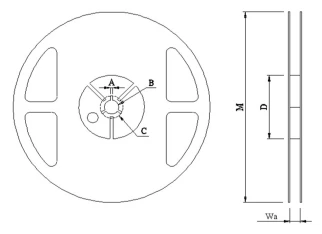

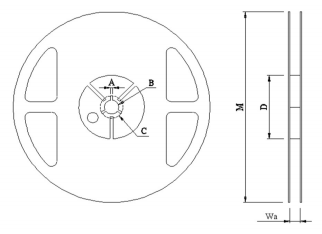

Reel Specification

LMP25

Type A B C D M W
2512 2.00±0.5 13.50±0.5 21.00±0.5 80.00±1.0 178.00±2.0 13.80±0.5

Packaging

Quantity: 4, 000pcs

8mm wide tape on 178mm(7 inch)

diameter reel -specification EIA

Standard 481.

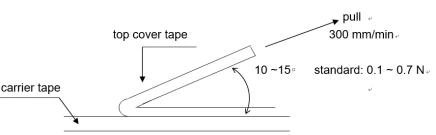

Peel strength of upper belt

Stripping speed: 300 mm / min; The peel force is between 0.1N and 0.7n.



LMP25

Storage conditions & shelf life

It can be stored for 2 years under closed conditions with temperature of 5 ° C ~ 35 ° C and relative humidity of 40 ~ 75

Please avoid the following harsh environment during storage to avoid affecting the product

performance and solder connectivity: the places with corrosive gases such as sea breeze, Cl2, H2S, NH3, SO2 and NO2 shall be stored without direct sunlight.

Precautions for product use

When measuring the resistance value before welding, a special resistance meter with high precision shall be used. When measuring, a 4-wire probe or fixture must be used. 4. When measuring parts with a wire    measuring needle, the 4 measuring needles must indeed contact the parts.

Avoid damaging the protective layer during manual welding or clamping with tweezers.

When the PCB is divided or fixed on the support, be careful to avoid excessive bending causing mechanical stress to the resistor.

It shall be used within the rated power range within the specification, especially when the power exceeds the rated value, which may affect the reliability of the product
