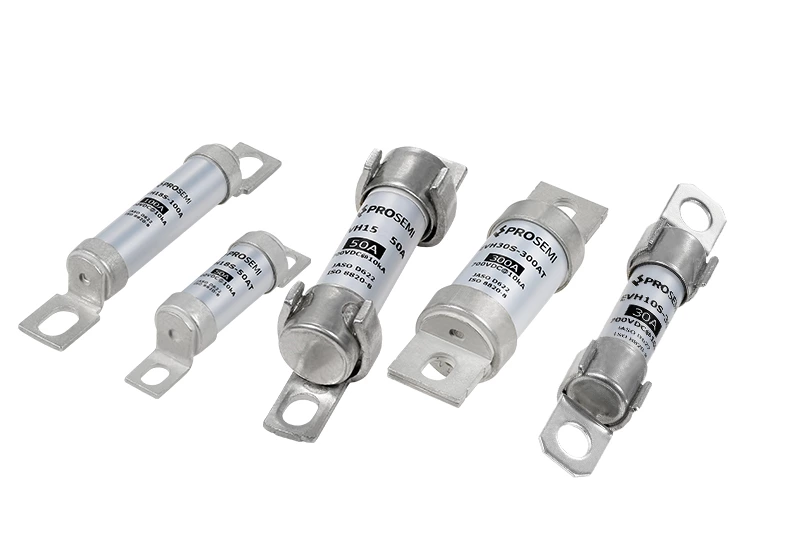

Automotive Fuses: Essential Circuit Protection for Modern Vehicles
In today’s vehicles, electronic systems have become more complex and power-demanding than ever. From engine management to infotainment and advanced driver assistance, every system requires reliable protection against overcurrent and electrical faults. Automotive fuses serve as the first line of defense, ensuring circuit safety, preventing component damage, and maintaining vehicle reliability.
1. What Are Automotive Fuses?
An automotive fuse is a sacrificial protection device that breaks the circuit when excessive current flows through it. This prevents overheating, wiring damage, and even fire hazards. Automotive fuses are designed specifically to withstand high vibration, wide temperature fluctuations, and transient electrical surges, making them crucial for modern automotive electrical architectures.
2. Main Types of Automotive Fuses
(1) Blade Fuses
The most common type used in passenger vehicles.
- Plastic body with two metal blades
- Color-coded by current rating for easy identification
Applications: Power distribution boxes, lighting systems, engine control modules
(2) Mini and Micro Fuses
Smaller versions of the standard blade fuse, designed for space-saving fuse panels in compact or modern vehicles. Applications: Compact ECU units, infotainment, interior electronics
(3) SMD (Chip) Fuses
Surface-mount fuses used on printed circuit boards (PCBs) for precision and high-speed protection.
- Compact design suitable for automated assembly
- Excellent thermal stability and fast response
Applications: ECUs, sensors, communication modules, infotainment systems
(4) Resettable Fuses (PTC Thermistors)
Unlike conventional fuses that must be replaced after tripping, resettable fuses automatically recover once the fault is cleared. Applications: USB ports, LED drivers, charging interfaces, low-voltage circuits
3. Key Functions of Automotive Fuses
- Overcurrent Protection: Interrupts excessive current to prevent component or wiring damage.
- Circuit Isolation: Limits failure to specific modules, ensuring other systems remain functional.
- Vehicle Safety: Reduces the risk of short circuits or electrical fires.
- System Reliability: Ensures consistent operation of critical systems like lighting and ECUs.00
4. Applications in Vehicle Electronics
| System | Typical Fuse Type | Protection Purpose |
|---|---|---|
| Power Distribution Unit | Blade, Mini | Protects high-current power lines |
| Lighting Systems | Blade, Micro | Prevents short circuit damage in LED or halogen circuits |
| USB/Charging Ports | Resettable PTC | Protects against overcurrent and short faults |
| Infotainment Systems | SMD | Safeguards delicate circuit boards |
| Battery and Engine Control | High-current blade | Ensures stable power delivery and circuit isolation |
5. Automotive Standards and Quality Requirements
Automotive fuses must meet strict international standards to guarantee long-term reliability and safety:
- ISO 8820: Specifies requirements for automotive fuse performance and testing.
- AEC-Q200: Qualification standard for passive components, ensuring resistance to vibration, heat, and humidity.
Manufacturers following these standards deliver components capable of maintaining performance under harsh automotive conditions.
6. Trends in Automotive Fuse Technology
The evolution of electric vehicles (EVs) and intelligent systems is driving new demands for fuses:
- Higher voltage ratings (400–800V) for EV batteries and powertrains
- Compact SMD fuses for miniaturized electronic modules
- Smart fuse modules with built-in diagnostics for real-time fault detection
- Environmentally robust materials to withstand higher thermal and mechanical stress
Future automotive fuses will integrate with electronic control units, offering both protection and data feedback for predictive maintenance.
Conclusion
Automotive fuses are the foundation of circuit protection in modern vehicles. Whether in high-power distribution systems or delicate electronic control modules, they ensure operational safety and reliability.
By choosing automotive-grade, ISO 8820 and AEC-Q200 certified fuses, manufacturers can guarantee performance stability and compliance with global automotive standards—making them indispensable in every automotive design.
