Full Analysis Of Car Brick Fuse: The Key Component For Protecting High Current Circuits
With the continuous improvement of the electronic and electrical levels of automobiles, the power consumption and complexity of on-board circuits have been increasing sharply. Whether it is a fuel vehicle or an electric vehicle, a stable and efficient circuit protection system is the core guarantee for the safe operation of the vehicle. Among the various automotive fuses, the brick fuse, due to its high current carrying capacity and compact structure, has become a common choice for main circuit protection.
What is a brick fuse?

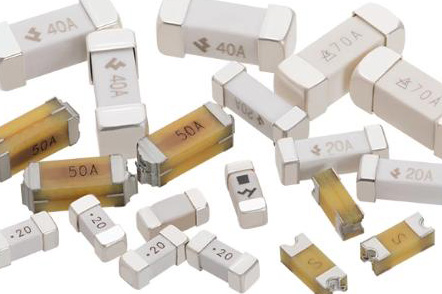

A brick fuse is a high-current automotive fuse with a rectangular “brick-like” shape, typically used for overcurrent protection in main power and high-power load circuits. Current ratings usually range from tens to several hundred amperes, while voltage ratings can cover 12V, 24V, and even the high-voltage platforms of electric vehicles.
Its name comes from its regular, block-shaped casing, which allows for high current conduction in limited space and better heat tolerance.
What Is an Automotive Brick Fuse?
An automotive brick fuse is a high-current fuse with a rectangular “brick-like” shape. It’s used in main power and high-load circuits, with ratings typically from tens to several hundred amperes. Voltage ratings cover 12V, 24V, and high-voltage EV platforms.
Its block-shaped casing provides efficient high-current conduction in a compact footprint, making it ideal for modern automotive fuse boxes.
The working principle of brick fuse
The working principle is similar to that of a standard fuse: when current exceeds the rated value for a certain period, the internal fuse element heats up and melts, breaking the circuit to prevent damage to wiring, control units, or other components.
Typical internal components include:
- Fuse Element – precisely engineered metal strip that determines the fuse’s blow characteristics.
- Housing – heat-resistant, flame-retardant plastic shell.
- Terminals – tin-plated copper for good conductivity and secure mounting.
Brick fuses are available in fast-blow and time-delay types, the latter being suitable for circuits with high inrush currents.
Types of Automotive Brick Fuses
- Standard Type – for general 12V and 24V automotive main circuits.
- High-Current Type – designed for electric drive systems or high-power accessories.
- Bolt-Down Type – mounted with bolts for superior vibration resistance, ideal for commercial or heavy-duty vehicles.
- Low-Profile Type – reduced height for use in compact fuse boxes.
Common Automotive Applications
- Main Battery Protection – prevents short circuits or overcurrent from the battery.
- Starter Motor Circuits – handles large inrush currents during engine start-up.
- Electric Power Steering (EPS) – safeguards essential steering systems.
- Electric Cooling Fans – ensures the engine cooling system runs safely.
- Audio Amplifiers and Entertainment Systems – protects high-power audio devices.
- EV Battery Packs and Charging Systems – designed for high-voltage, high-current operation.
Advantages of Brick Fuses
- High Current Capacity – capable of handling loads up to hundreds of amperes.
- Compact Design – saves installation space and allows flexible placement.
- High Reliability – withstands vibration, temperature extremes, and harsh automotive conditions.
- Easy Replacement – standardized sizes for quick servicing.
How to Select the Right Brick Fuse
- Rated Current – slightly higher than the normal operating current, but below the point that could damage wiring.
- Rated Voltage – matches the vehicle’s electrical system (12V, 24V, or high-voltage platforms).
- Blow Characteristics – choose fast-blow or time-delay based on load type.
- Environmental Suitability – consider temperature range, vibration resistance, and moisture protection.
- OEM Specifications – refer to manufacturer-recommended ratings whenever possible.
Nstallation and Replacement Tips
- Always disconnect the vehicle’s power before replacement to avoid electric shock or short circuits.
- For bolt-down types, tighten to the specified torque to prevent loose connections.
- If fuses blow repeatedly, check for underlying circuit faults rather than simply installing a higher-rated fuse.
Maintenance and Troubleshooting
- Visual Inspection – discoloration or deformation may indicate overheating.
- Repeated Blowing – could mean a short circuit or overloaded circuit.
- Regular Checks – especially for fuses in high-load circuits, include them in scheduled maintenance.
Future Trends
- High-Voltage EV Fuses – designed to support higher voltages and faster response.
- More Compact Designs – to meet growing space constraints from increasing onboard electronics.
- Smart Diagnostics – integration with sensors for real-time fuse status monitoring.
Conclusion
As a guardian of high-current circuits, the brick fuse plays an irreplaceable role in protecting automotive starting, driving, and critical electronic systems. With the rise of electric and smart vehicles, the performance and design requirements for brick fuses will continue to evolve. Choosing high-quality, properly rated brick fuses not only ensures circuit safety but also extends the service life of the entire vehicle.
