Resistors in automotive electronics
1. Introduction: Why Resistors Matter in Automotive Electronics
Modern vehicles are packed with electronics that manage everything from lighting and sensors to engine control and infotainment. Behind every reliable circuit lies a small but vital component — the resistor.
Resistors regulate electrical current, protect sensitive components, and ensure signals remain stable across harsh automotive environments. Without them, the precision and safety of today’s vehicles would not be possible.
2. What Do Resistors Do in Automotive Systems?
In automotive electronics, resistors have several critical functions:
- Current Limiting: Prevent excessive current in LED lights, sensors, or control units.
- Voltage Division: Provide stable reference voltages for sensors and ECUs.
- Signal Conditioning: Filter noise and stabilize signals for microcontrollers.
- Current Sensing: Work as shunt resistors in battery management systems (BMS).
- Overcurrent Protection: Fusible resistors act as both resistor and fuse.
From headlight modules to engine management systems, resistors ensure each electronic circuit works safely and efficiently.
3. Common Types of Automotive Resistors
Automotive applications require resistors that can handle extreme temperatures, vibration, and long service life. Below are the most widely used types:
| Type | Description | Typical Automotive Use |
|---|---|---|
| Thick Film Resistors | Cost-effective and durable | Control modules, dashboard circuits |
| Metal Film Resistors | High accuracy, low noise | Instrument clusters, audio systems |
| Wirewound Resistors | Excellent power handling | Motor drive, brake systems |

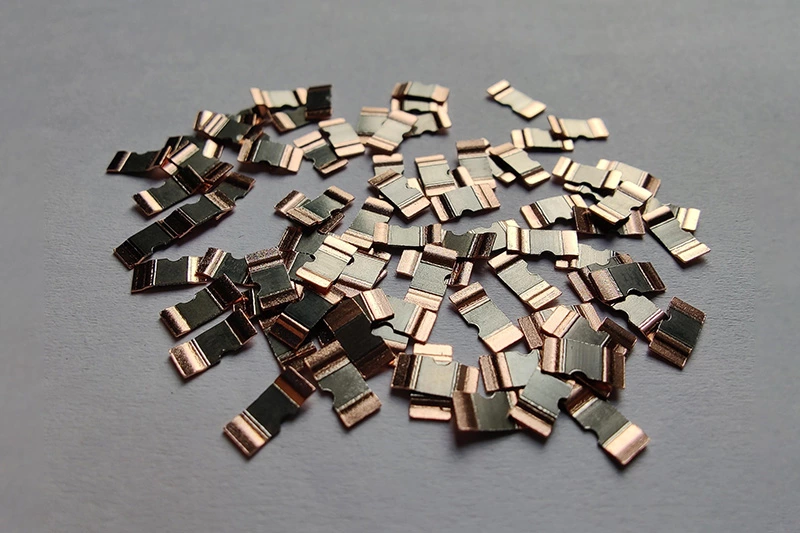

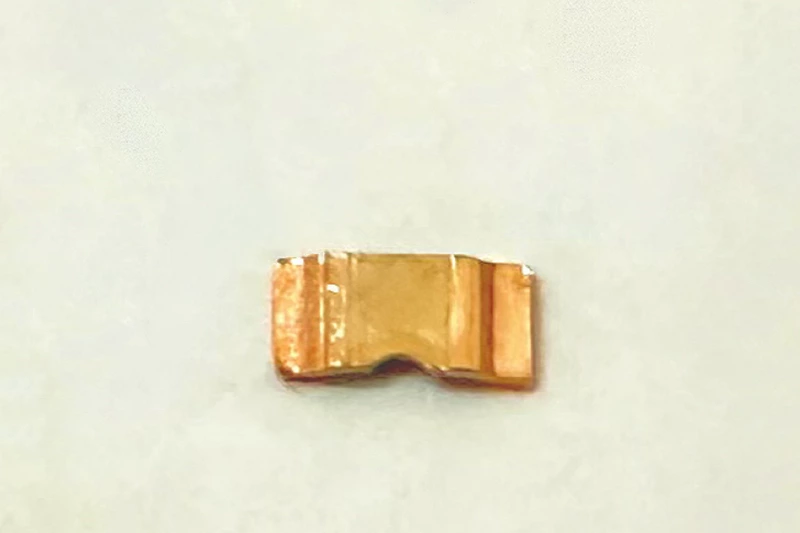

| Shunt Resistors | Precise current measurement | BMS, ECU monitoring |
| Chip (SMD) Resistors | Compact and reliable | Control boards, infotainment units |
| Fusible Resistors | Combine resistor and fuse | Safety and protection circuits |
4. Automotive-Grade Performance Standards
Not all resistors are created equal. Automotive-grade resistors are designed to meet the AEC-Q200 standard, which guarantees performance under tough conditions.
Key requirements include:
- Wide operating temperature (–55°C to +155°C)
- High vibration and humidity resistance
- Stable resistance (low TCR)
- High surge and pulse tolerance
- Extended operational life
Choosing AEC-Q200 qualified resistors ensures your circuits can withstand the extreme demands of automotive environments.
5. Main Applications of Resistors in Automotive Electronics
Resistors are used in nearly every part of a car’s electrical system:
Powertrain & Engine Control
- Fuel injection and ignition timing
- Alternator voltage regulation
- Engine control unit (ECU) load balancing
Lighting & Body Electronics
- LED current control in headlights and taillights
- HVAC control circuits
- Power window and mirror modules
Safety Systems
- Airbag control units (ACU)
- ABS and traction control circuits
- Seatbelt reminder sensors
Infotainment & Communication
- Audio signal filtering
- Touchscreen interface stabilization
- Noise suppression in communication lines
Electric & Hybrid Vehicles (EV/HEV)
- Battery voltage sensing and current measurement
- Inverter and converter power regulation
- Thermal management circuits
6. How to Choose the Right Automotive Resistor
Selecting the right resistor depends on performance, safety, and cost considerations. Engineers should evaluate:
- Power rating and tolerance
- Temperature coefficient (TCR)
- Pulse load capability
- Size and mounting type (SMD, through-hole)
- Automotive qualification (AEC-Q200)
For high-reliability areas like BMS or ECUs, always choose resistors from certified automotive component manufacturers.
7. Future Trends: Smarter and Smaller Resistors
As vehicles evolve toward electric and autonomous systems, resistors must handle higher voltages, faster switching speeds, and denser circuit designs. Future automotive resistors will focus on:
-
Miniaturization (smaller SMD packages)
-
High surge energy handling
-
Enhanced thermal stability
These improvements help support next-generation EV platforms and ADAS technologies.
8. Conclusion
Resistors may seem like simple components, but in automotive electronics, they are the backbone of reliability and safety.
From engine control to battery management, every circuit depends on resistors to maintain balance and performance.
As automotive technology continues to advance, choosing high-quality, automotive-grade resistors will remain essential to achieving efficiency, safety, and durability in every vehicle.
