LMJ20

Description

  • Thick copper conductor metallized material.
  • Ultra long term stability.
  • Halogen-free and lead-free RoHS compliant.
  • Stable materials.
  • Excellent trustworthiness.
  • High power rating.
  • Ultra-low temperature drift (good TCR).

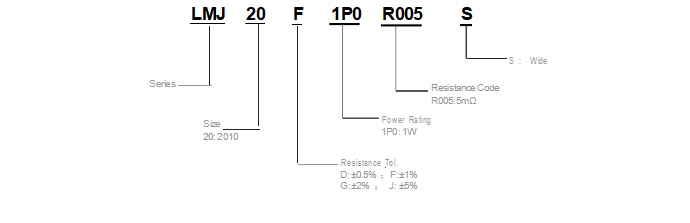

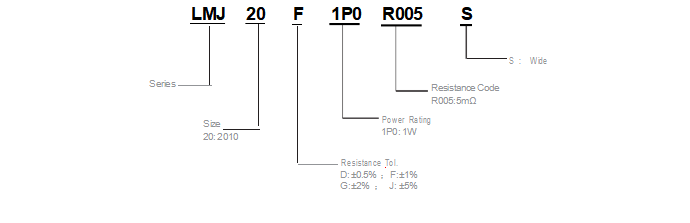

Part Numbering System

LMJ20

Parameter Standard
Power Rating 1 &1.5 W
Resistance Value 1~100mΩ
Operating Temperature Range -55 to +170°C

Rated Current = (P / R)1/2;

P=Power Rating,R=Resistance Value.

Standard Electrical Specifications

    Type     Rating Power at 70℃   T.C.R.  (ppm/c) Resistance Range(mΩ) 0.5%(D) 1.0%(F) 2.0%(G) 5.0%(J)     Meterial     Operating Temperature(℃)
  LMJ20   1&1.5 W   ±50 1~4mΩ : S 1~100mΩ   CuMn   -55~+170°C

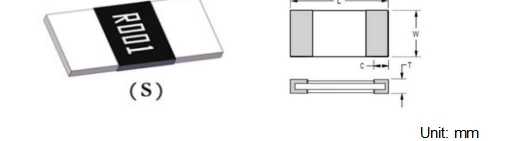

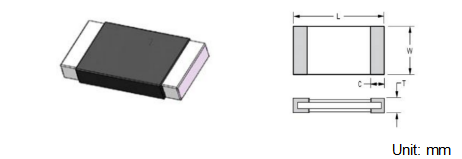

construction

LMJ20

Type Resistance (mΩ ) L W C T
  LMJ 20-S   1~4   5.0 ±0.2   2.5±0.2   1.5±0.3   0.6±0.2

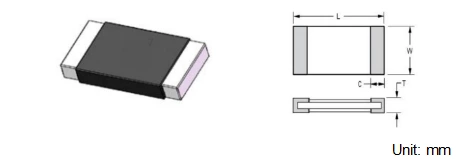

LMJ20

Type Resistance (mΩ ) L W C T
  LMJ 20   1~ 100   5.0 ±0.2   2.5±0.2   0.6±0.3   0.6±0.2

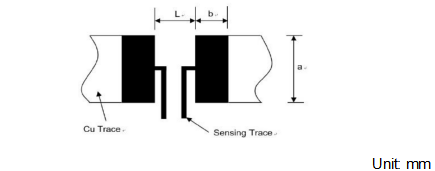

Recommended land pattern

LMJ20

Type Resistance (mΩ ) a b L
LMJ 20 1~100 3.4±0.2 1.5±0.2 3.5±0.2
LMJ 20 - S 1~4 3.4±0.3 3.5±0.2 2.0±0.2

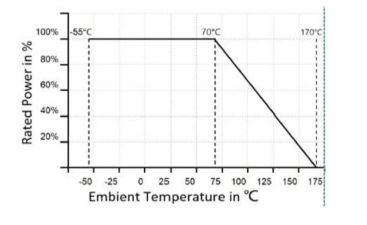

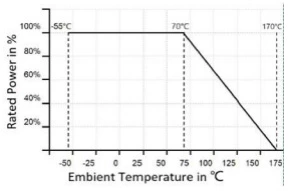

Power Derating Curve

For resistors operated in ambient temperatures 70°C, power ratingshall bederated inaccording with the curve below:

LMJ20

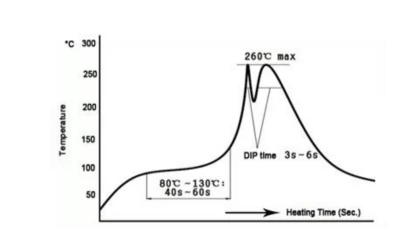

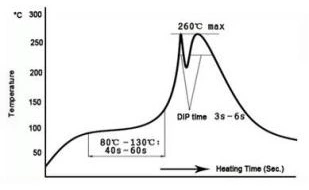

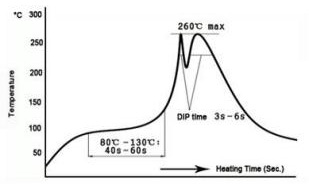

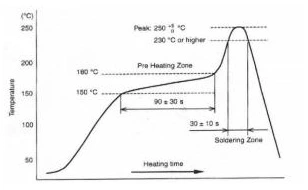

Wave- Soldering Profile

LMJ20

Product Characteristics

Item Test condition/ Methods Limited Standard
  Temperature coefficient of resistance TCR =(R-R0)/R0(T2-T1)X 106 R0: resistance of room temperature R: resistance of 125℃ ; T1: Room temperature T2: Temperature at 125℃     Refer to Spec     JIS-C 5201
Short time Overload 5 X rated power for 5s ≤±0.5%   JIS-C5201-1 4.13
Temperature Cycling 1000 Cycle (-55℃ to 125℃)   , 30 min at each extreme ≤±0.5% JESD22 Method JA-104
Low temperature Storage -55℃ for 1000 hours, No power ≤±0.5% JIS C 5201
High Temperature Storage 1000 hours at 125℃,No power ≤±1% MIL-STD-202 Method 108
  Biased Humidity 85℃±5℃, 85±5% RH 10% bias, 1000 hours ,at rated power 1.5 hours “ON”, 0.5 hours “OFF” , after standing 24±4 hours to measure the resistance change rate.   ≤±0.5% MIL-STD-202 Method 103
Operational life Apply the rated current to the 125±3℃ incubator for 1000 hours, and stand for 24±4 hours after    removal to measure the resistance change rate. ≤±0.5% MIL-STD-202
Method 108
  Load Life 70℃± 2℃, 1000 hours, at rated power 1.5 hours “ON”, 0.5 hours “OFF” , after taking it out and standing for more than 1 hour, the resistance change rate is measured.   ≤±1%   JIS-C5201
Resistance to Solder Heat 260℃± 5℃, time:10 ±1 sec, 1000 hours, after taking out and standing for more than 1 hour,    measure the resistance change rate.   ≤±0.5% MIL-STD-202 Method 210
  Solderability Soak in the furnace at 245±5℃ for 3±1 sec .Take out and observe the solder area under a magnifying alass. Solder coverage over   95%No Visual damage   J-STD-002
      Joint Strength of Solder ◆ Test item  (Bendability test) Weld in the bending test plate, place on the bending test machine, press in the center of the test plate,     and measure under load.   ≤±0.5%   JIS-C5201-1 4.32
◆ Experiment item 2  (Fixation test) Weld the resistance in the rigidity test plate, place it on the end electrode test machine, apply the force   in the direction of the force with the test probe with   the radius of R0.5, and maintain 10 sec, and measure the resistance change rate under the load.     ≤±0.5%     JIS-C5201-1 4.32

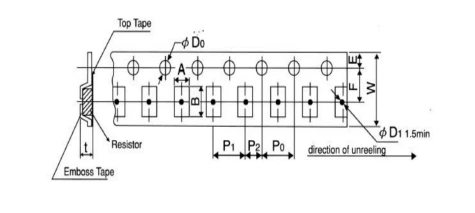

Tapping & Package

LMJ20

  Type   Pack A ±0.2 B ±0.2 D0 0.05+/-0 E ±0.1 F ±0.05 P0 ±0.1 P1 ±0.1 P2 ±0.1 W   ±0.2 D1 ±0.05 T ±0.15
2010 Emboss 2.80 5.30 1.50 1.75 5.50 4.00 4.00 2.00 12.00 1.50 0.85

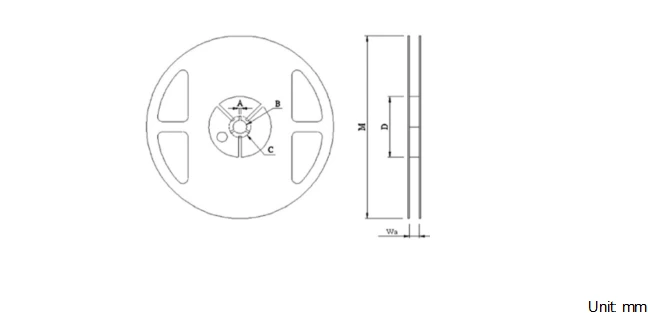

Reel Specification

LMJ20

Type A B C D M W
2010 2.00±0.5 13.5±0.5 21.00±0.5 60.00±1.0 178.00±2.0 13.80±0.5

Packaging

Quantity: 4, 000pcs

Resistor Production Resource Pool

★:Common resistance values;

LMJ20 series 2010
R005 R010 R030 R050 R100

√:Resistance values can be produced.

LMJ20 series 2010
R002 R003
