PHS-8436
Product Features
Electron Beam Welding (EBW) process
High reliability, high overload capacity, and superior precision
Wide operating temperature range with low parasitic inductance design
Low thermal electromotive force (< 0.5 μV/°C)
Integrated NTC temperature sensor for real-time temperature monitoring or temperature drift compensation
Electrodes fully plated with nickel–tin
Electrical Characteristics
| Shunt Resistor (PHS8436-M025J-M2M-L4) | ||||||
| Series | Size | Rated Current (A) |
Resistance Value (μΩ) |
Resistance Tolerance | Operating Temperature (℃) |
Resistance Temperature Coefficient (20 °C ~ 60 °C) (ppm/℃) |
| PHS | 8436 | 800 | 25 | ±5% | -40 ~ +125 | ±150 |
| NTC (NCP18XH103F03RB) | ||||||
| Zero Rated Resistance R25 (KΩ) |
R25 Tolerance | Temperature Coefficient B Value (25/25 °C) | Operating Temperature (℃) |
|||
| 10 | 1% | 3380 | -40 ~ +125 | |||
product coding system
PHS 8436 - M025 J - M2M - L4
【1】 【2】 【3】 【4】 【5】 【6】
【1】Series Name: PHS series shunt resistor;
【2】Product Dimensions: 8436 Length 84㎜, Width 36㎜;
【3】Resistance Value: M025: 25μΩ;
【4】Resistance Tolerance: J: ±5%;
【5】Material Structure: M2M: Copper-Manganese (MnCu) + Electrodes plated with Nickel–Tin + PCB Connector
【6】Internal Identification Code: L4.

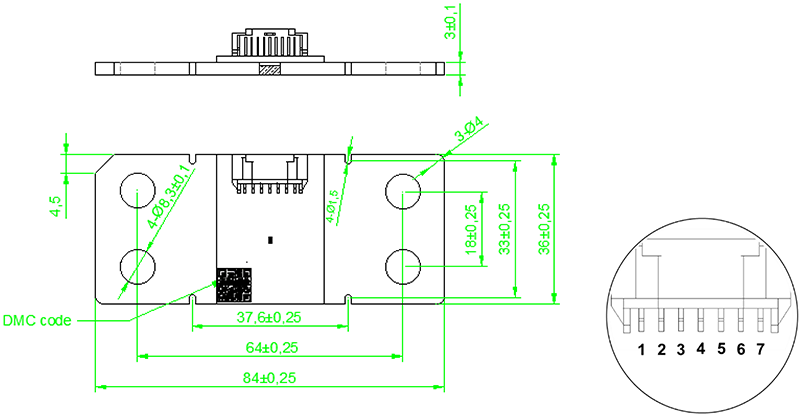

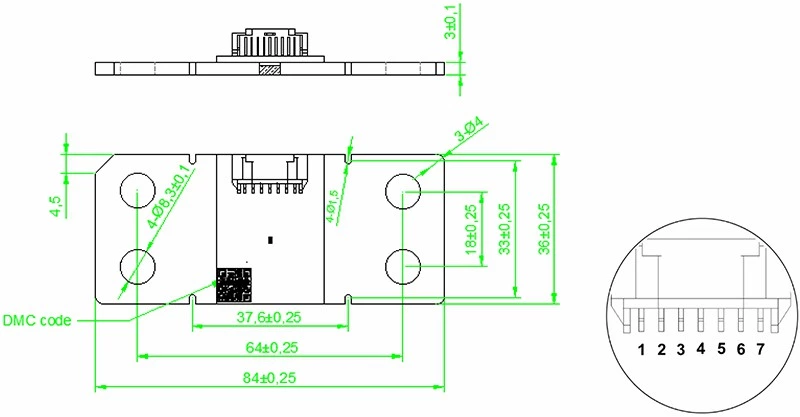

Product Size
| Connector Interface | ||
| Manufacturer | Part Number | Pin Definition |
| MOLEX | 502352-0700 | 1: TEMP_P |
| 2: SHUNT_P1 | ||
| 3: SHUNT_P1 | ||
| 4: SHUNT_N2 | ||
| 5: SHUNT_N1 | ||
| 6: SHUNT_N | ||
| 7: SHUNT_GND | ||
QR Code Content Description
1. QR Code Size: 6x6㎜
2. QR Code Information:
| Year | Month | Day | Module Information | Nominal Resistance at Room Temperature | Quadratic Coefficient A | Linear Coefficient B | Constant C | |
| Format | xxxx | xx | xx | xxxxx | Rxxxxxn | ±x.xxxxxxxxx | ±x.xxxxxxxxx | ±x.xxxxxxxxx |
| Example | 2024 | 05 | 15 | 00001 | R25120n | -0.000000305 | +0.000092070 | +0.996706113 |
| 2024051500001R25120n-0.000000305+0.000092070+0.996706113 | ||||||||
1) Shunt Resistor Drift Compensation with Ambient Temperature (Normalized Compensation Factor)
The compensation factor is defined as:
Rcomp=A⋅T2+B⋅T+C
Formula Description:
T: Temperature reading from the PCB-mounted NTC sensor
A: Quadratic coefficient (default: –0.000000305*)
B: Linear coefficient (default: +0.000092070*)
C: Constant term (default: +0.996706113*)
2)Compensated Shunt Resistance:
Rshunt(comp)=R25⋅Rcomp
where R25 is the shunt resistance at 25 °C.
Note: *Values are for reference only.
Performance Testing
| Item | Test Method | Criteria | Standard |
| Resistance Temperature Coefficient (TCR) | TCR=(R-R0)/R0(T2-T1)X 106 | As per specification | MIL-STD-202 Method 304 |
| Short-term Overload | 1700A for 5s | △R≤±0.5% | IEC 60115-1 4.13 |
Packaging Method
Bag packaging: 1 piece per bag, or customized
