Overvoltage Protection In Automotive Electronics: Best Practices For Diode Selection And Pcb Layout

1. Introduction

Modern vehicles rely on densely packed electronic systems—from engine control units (ECUs) to advanced driver-assistance systems (ADAS) and in-vehicle networking. Transient voltage spikes, whether from alternator switching, load changes, electrostatic discharge (ESD) or inductive coupling, can wreak havoc on sensitive modules. By choosing the right protection diodes and placing them smartly on the board, you can clamp dangerous surges in nanoseconds and divert the energy safely to ground.

2. Diode Types and How They Work

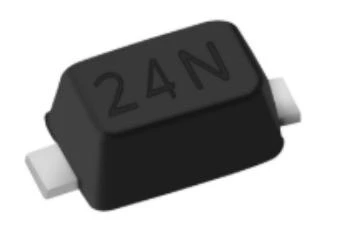

  (1) Zener Diodes

• How they work: In reverse bias, they break down sharply at their rated voltage and hold it there, acting as precise voltage clamps.

• Use case: Low-power reference rails and microcontroller supply lines.

• Key specs: Zener voltage (Vz) and maximum power dissipation (Pz).

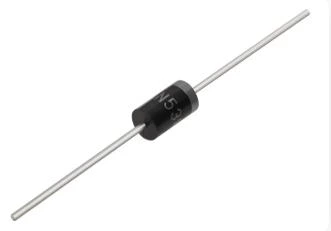

（2)TVS (Transient-Voltage-Suppressor) Diodes

• How they work: At a defined breakdown voltage, they switch from high impedance to low impedance in less than a nanosecond, shunting surge currents to ground.

• Use case: CAN/LIN data lines, ECU power inputs, high-speed communication ports.

• Key specs: Breakdown voltage (Vbr), clamping voltage (Vc at specified surge current), peak pulse current (Ipp), leakage current, junction capacitance.

（3） Schottky Diodes

• How they work: Under forward surge conditions, they conduct with a low forward drop, absorbing positive spikes; when reverse-biased, they block until breakdown.

• Use case: After alternator rectifier bridges, protecting power rails from reverse transients.

• Key specs: Forward voltage (Vf), surge current rating (IfSM), reverse leakage.

（4） Fast-Recovery Diodes

• How they work: They switch off much faster than standard rectifiers, limiting large energy spikes while adding minimal switching losses.

• Use case: High-power loads such as HVAC compressors and DC–DC converter inputs.

• Key specs: Reverse recovery time (trr), surge current rating, forward voltage.

3. Key Selection Criteria

  (1)Voltage Margins

• Choose a breakdown or Zener voltage at least 10–20% above the highest steady-state system voltage to avoid nuisance triggers.
• Ensure the diode’s clamping voltage stays below the maximum rating of downstream components.

  (2)Surge Current and Energy Handling

• Match the diode’s peak pulse current (Ipp) and energy rating (E = ∫V·I·dt) to the worst-case transients defined by standards like ISO 7637-2 (8/20 µs) and ISO 16750-2 (1.2/50 µs).
• Consider repeated surge capability and thermal stability for long-term reliability.

（3）Response Speed and Signal Integrity

• For high-speed data lines, pick TVS diodes with < 1 ns response time.
• Limit junction capacitance (≤ 5 pF) on CAN, FlexRay, and Ethernet interfaces to preserve signal quality.

（4）Thermal Performance and Reliability

• Verify operating temperature range (–55 °C to +150 °C) and thermal resistance (θJA, θJC).
• Check long-term reliability grades such as HTOL (High-Temperature Operating Life) and EOST (End-of-Service-Life Test).

（5）Package Type and PCB Layout

• Mount protection diodes as close as possible to connectors or signal entry points to minimize parasitic inductance.
• Use a short, wide ground return—star-point or single-point ground—to keep loop impedance low.
• Where needed, pair TVS diodes with common-mode chokes or ESD filter arrays for enhanced noise immunity.

4. Typical Application Examples

5. Conclusion

Voltage transients in automotive systems are inevitable—but you don’t have to leave your electronics exposed. By carefully selecting diodes for the right breakdown voltage, surge current capacity, speed and capacitance, and by placing them correctly on the PCB with robust grounding, you’ll ensure your ECUs, sensors and communication lines stay protected mile after mile. For tailored recommendations or simulation support, feel free to reach out.
